PCLX 12/40E
PCLX 12/40E

Lightweight Electric Plate Compactor

A lightweight professional compaction plate with high performance and travel speed from the 12kN vibration unit. Designed with an environmentally friendly Electric Motor for use indoors and poorly ventilated areas.
StockcodeDescription
LCE4001PCLX12-40E - 110V UK ORANGEBuy it now
LCE4002PCLX12-40E - 230V UK ORANGEBuy it now
PCLX 12/40E image 0 PCLX 12/40E
Advantages
  • High performance 12kN vibration unit for excellent travel speed.
  • High Compaction Force reduces operating times.
  • Environmentally friendly, 1.5kW zero emission Electric Motor for use indoors & in poorly ventilated areas.
  • Low HAV design allows longer, safe usage times.
  • Efficient Electric Motor is ideal for night time and urban usage.
  • Centrifugal Clutch for soft start & reduced current surge.
  • Professional 16amp power inlets for effective cable management.
  • Sealed oil-filled vibrator with top quality bearings for reliability and durability.
  • Front & rear manual handling points for easy 2-man lift.
  • Removable, ultra low folding operator's handle for ease of transportation and storage.
  • 8mm thick long life base plate for optimum compaction and reliability.
  • Engineered to be robust and durable for rental and heavy contractor use.
  • No fuel or engine maintenance and higher return on investment.
  • Class 1 Earthed Appliance.
  • Integrated Motor protection guard.
  • Block Paving Pad option available.

NOTE: For use with Extension Cables up to 25M in length - Extension Cable is not supplied with this product.

Ref Model

Motor
Power
(Hp - kW)

Minimimum
Transformer
Size (kVA)
Static
Pressure
(kg/m2)
Max.
Gradient
(°)
Centrifugal
Force
(kN)
Travel
Speed
(m/min)
Vibration
Level
(m/sec2)
Weight
(kg)
Buy Now
LCE4001 PCLX 12/40E 110v 50Hz 2.0 - 1.5 3.3 388 20 12 24 3.97 50

LCE4002 PCLX 12/40E 230v 50Hz 2.0 - 1.5 N/A 388 20 12 24 3.97 50

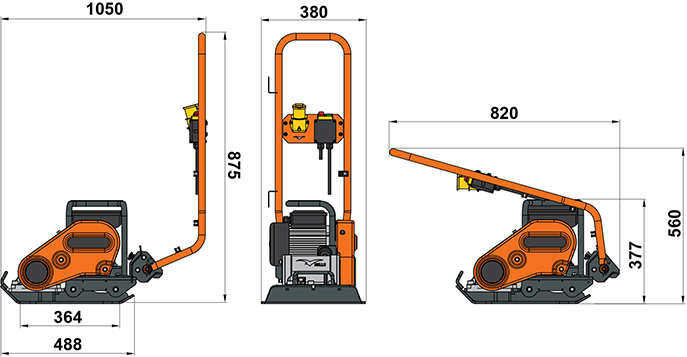

STATIC DIMENSIONS
Operator Manuals
 PCLX 12/40E operator manual - en
Product Brochure
 PCLX 12/40E product brochure - en



Ref Model Weight
(kg)
Buy Now
OPP/82/DIO Block Paving Pad PCEL 400E 1.4



968/01200 PAT Testing Rig 19

Click here for spare parts.
