Baromix Commodore
Baromix Commodore

A heavy-duty site mixer designed for prolonged site and rental use

Built to withstand the toughest conditions. The Commodore range is ideal for mixing larger batches of concrete and mortar.
Baromix Commodore image 0 Baromix Commodore
Advantages
  • Heavy-duty chassis designed to withstand tough site conditions.
  • Rigid,reinforced drum to prevent distortion.
  • Foot operated tip-lock and large tip wheel for added safety and control with large mixes.
  • Stage 5 compliant Yanmar L48 Electric-Start Diesel engine.
  • High quality mixing performance from gated paddle design.
  • Easy-to-clean steel chassis.
  • Sealed, heavy-duty high specification gearbox for reduced maintenance.
  • Robust, easy to use Parking Brake for increased on-site safety.
Model Part Number Engine
Power
(Hp/kW)		 Cubic Feet
In/Out		 Mixed
Batch
Output		 Max. Drum
Capacity
(Ltr)		 Max. Mixing
Capacity
(Ltr)		 Drum
Speed
(mm)		 Weight
(kg)
Commodore 5/3.5 Yanmar L48
Diesel Electric Start		 COM53VYEY 3.0/2.5 5/3 110 250 160 19 418
Commodore 7/5 Yanmar L48
Diesel Electric Start		 COM75VYEY 3.0/2.5 7/5 160 300 220 19 423
Commodore 10/7 Yanmar L48
Diesel Electric Start		 COM107VYEY 3.0/2.5 10/7 220 400 310 19 438

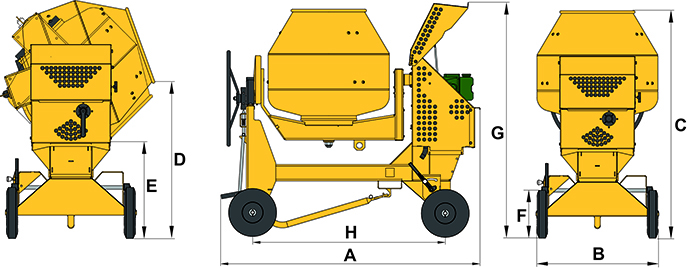

STATIC DIMENSIONS


    5/3 7/5 10/7
A - Overall Length (mm) 1900 1900 1850
B - Overal Width (mm) 900 900 900
C - Overall Height (mm) 1300 1415 1430
D - Loading Height (mm) 1060 1140 1200
E - Discharge Height (mm) 720 620 580
F - Diameter of Wheels (mm) 350 350 350
G - Overall Height (Door Open) (mm) 1710 1710 1710
H - Wheel Base (mm) 1140 1140 1400
Operator Manuals
 Baromix Commodore operator manual - en
Product Brochure
 Baromix Commodore product brochure - en

Currently no videos for this product

Currently no options for this product

Click here for spare parts.
