PCX 13/40E+
PCX 13/40E+

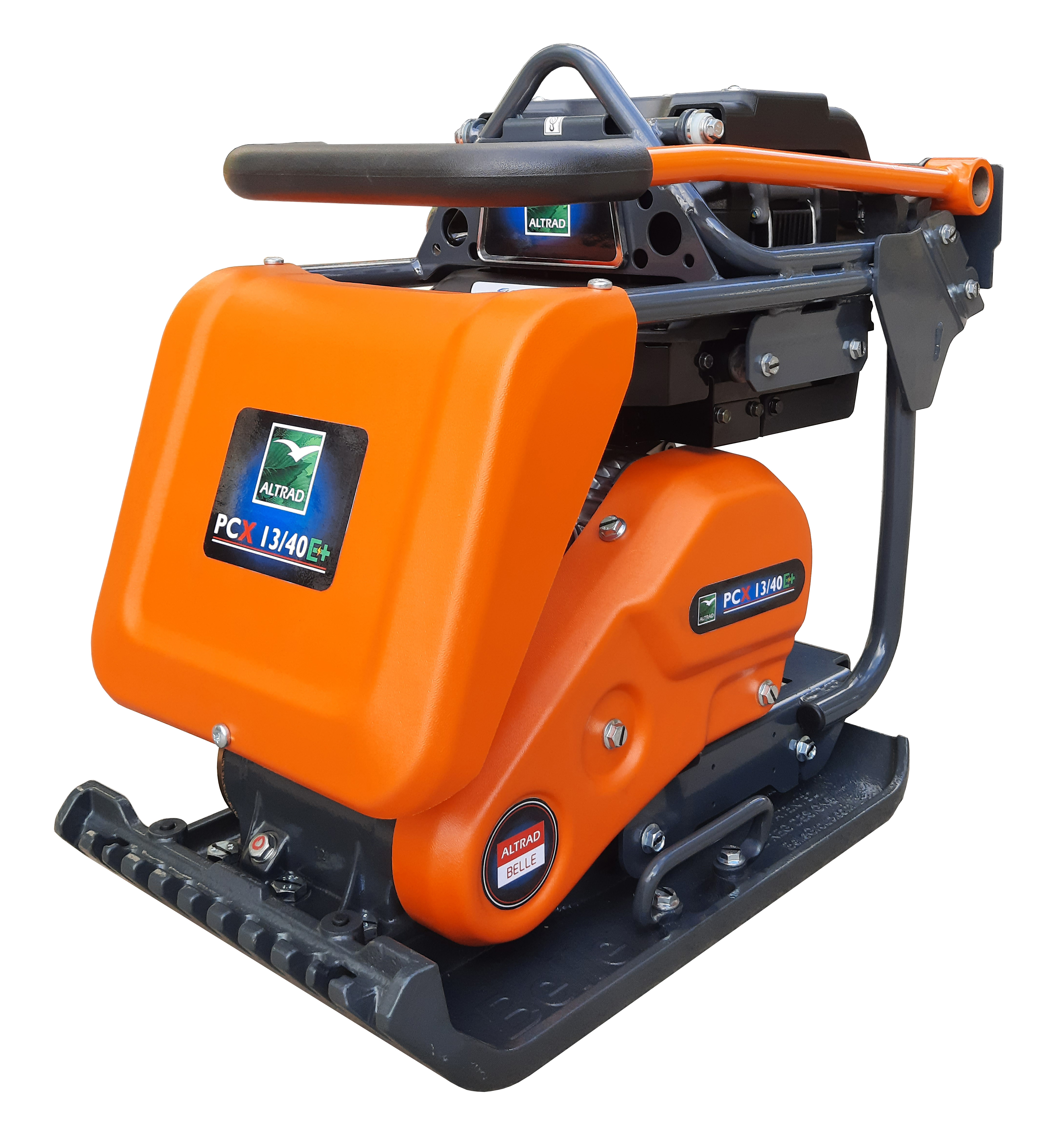

Heavyweight Battery Powered Plate Compactor

Heavyweight, professional combination compaction plate designed with an emission free, Li-ion battery powered motor for all your compaction requirements, indoor usage and poorly ventilated areas. Produces low HAV values and matches the high performance compaction of its petrol powered equivalent, but without the environmental impact... ...Building a Sustainable Future!
PCX 13/40E+ image 0 PCX 13/40E+
Advantages

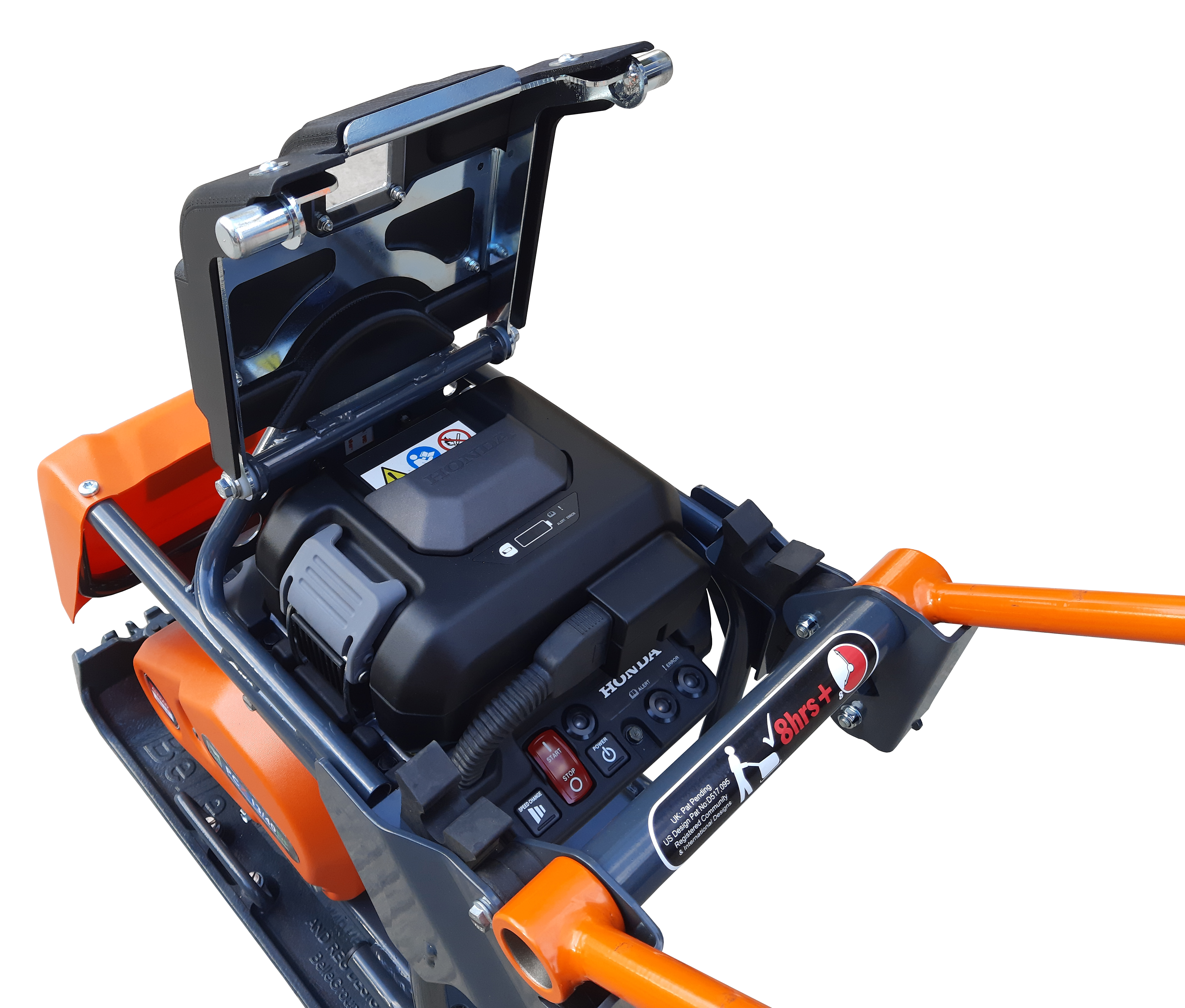

  • Fitted with a robust, highly efficient brushless Honda eGX motor
  • Lithium Ion battery, interchangeable with other Honda eGX powered Altrad Belle products.
  • Environmentally friendly, emission free for use indoors & in poorly ventilated areas such as basements and tunnels.
  • Low noise offers increased working hours and usage in noise restricted areas.
  • High performance 13kN vibration unit gives excellent travel speed and compaction force, reducing operating times.
  • Low operating HAV levels, gives more than 8hrs operator trigger time.
  • Foldable mounted guide handle offers superior manoeuvrability and can be lowered to operate under obstacles and close to form work.
  • Reinforced centrifugal clutch ensures longer belt life, and simplified belt adjustment.

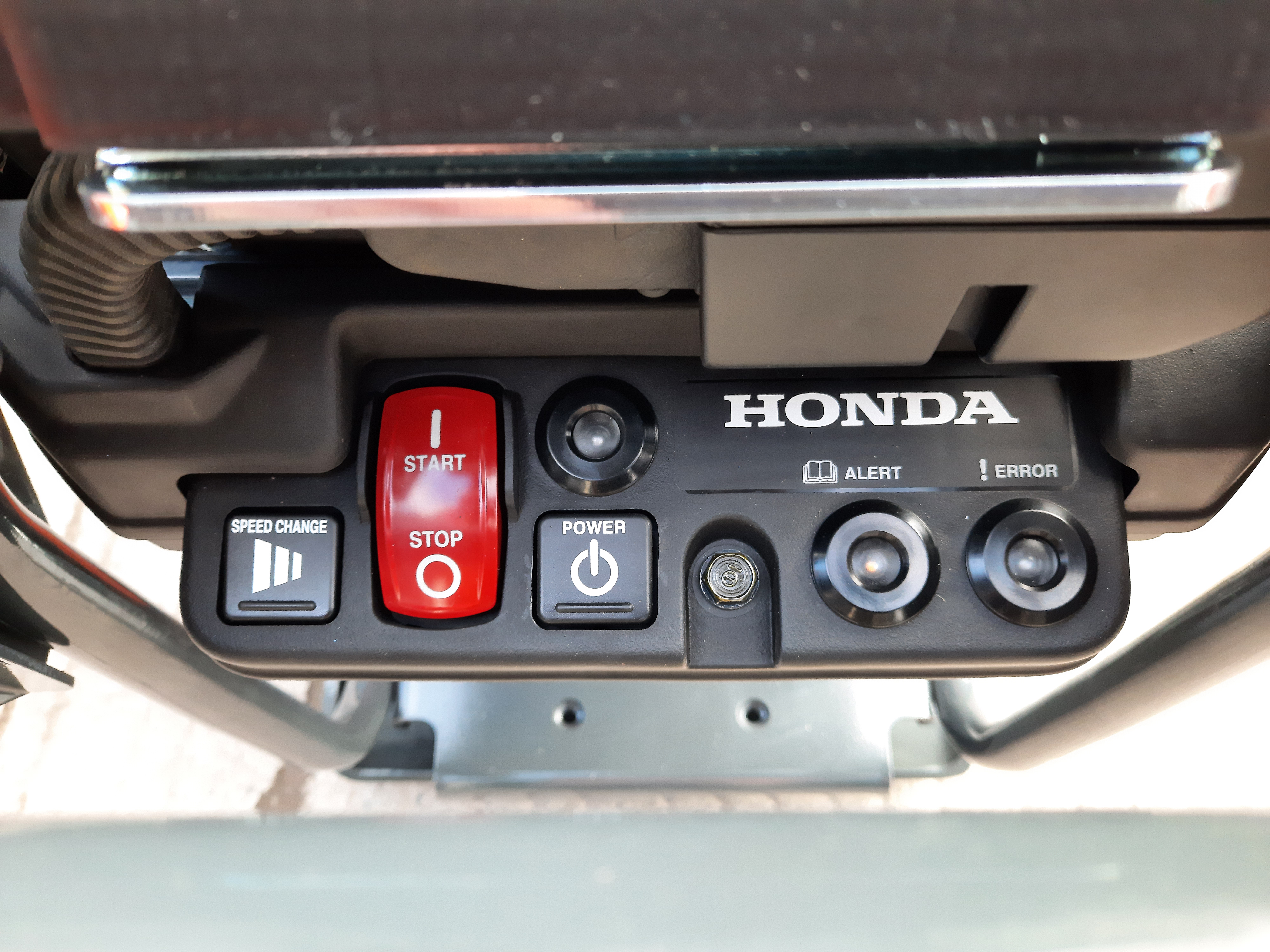

  • Single switch operation makes starting the power unit easy. No choke or recoil start.
  • 3-speed selector, allowing slower speeds when working around obstacles.
  • No routine power unit maintenance eliminates servicing or costly downtime due to repairs. no blocked carburettors

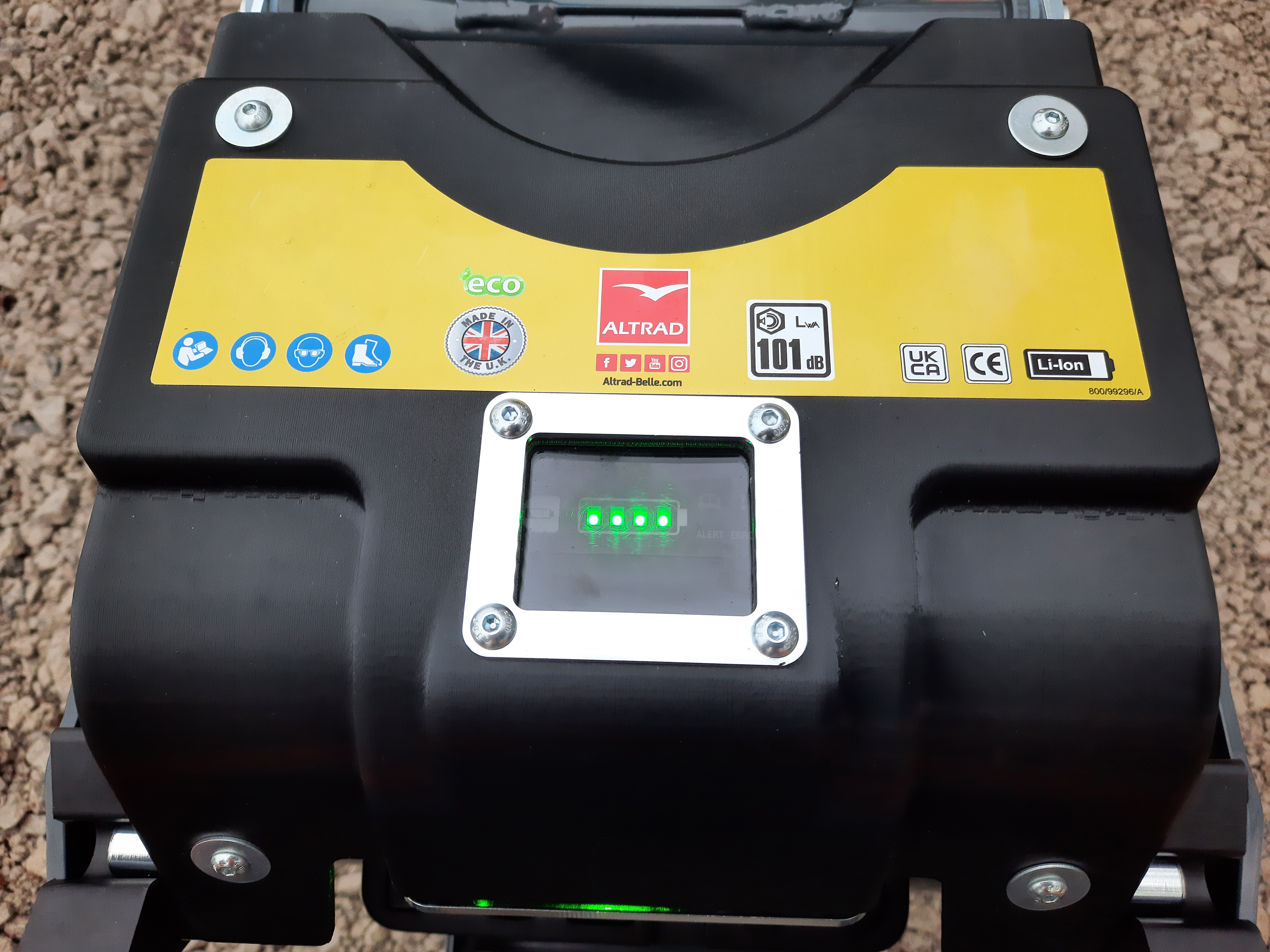

  • Robust protective battery cover & steel sub frame. With integrated battery power level viewing window.
  • Lifting points and front lift cage offer easier loading and unloading for operator convenience.
  • Optional, large 9.5 litre water tank is built into the main frame for added protection.
  • The spray bar is fully protected from damage, easily positioned, with integral paving pad clamp points.
  • Angled holes on spray bar allow complete water coverage over the full width preventing any asphalt pick-up on plate bottom.
  • Life lubricated vibration bearings.
  • Block Paving Pad and Wheel Kit options also available.
  • Customer colour options available.
Ref Model Motor
Power
(Hp/kW)		 Plate Size
W x L
(mm)		 Static
Pressure
(kg/m2)

Frequency
(Hz)

 Centrifugal
Force
(kN)		 Max
Gradient
(°)		 Travel
Speed
(m/min)		 Vibration
(m/sec2)		 Motor
RPM		 80% Battery
Charge
Time (mins)		 100% Battery
Charge
Time (mins)		 Weight
(kg)
FC4050E PCX 13/40E+ 2.2 / 1.6 400 x 606 560 101 13 20 20 <2.5 3600 / 3000 / 2800 50 75 89

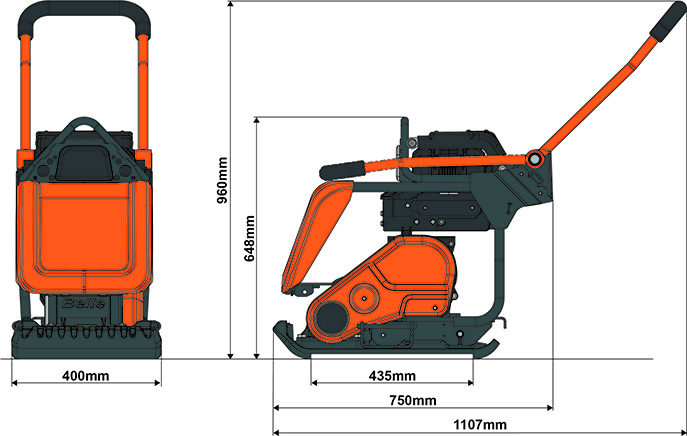

STATIC DIMENSIONS


Operator Manuals
 PCX 13/40E+ operator manual - en
Product Brochure
 PCX 13/40E+ product brochure - en

Currently no videos for this product

Ref Model Weight
(kg)		 Buy Now

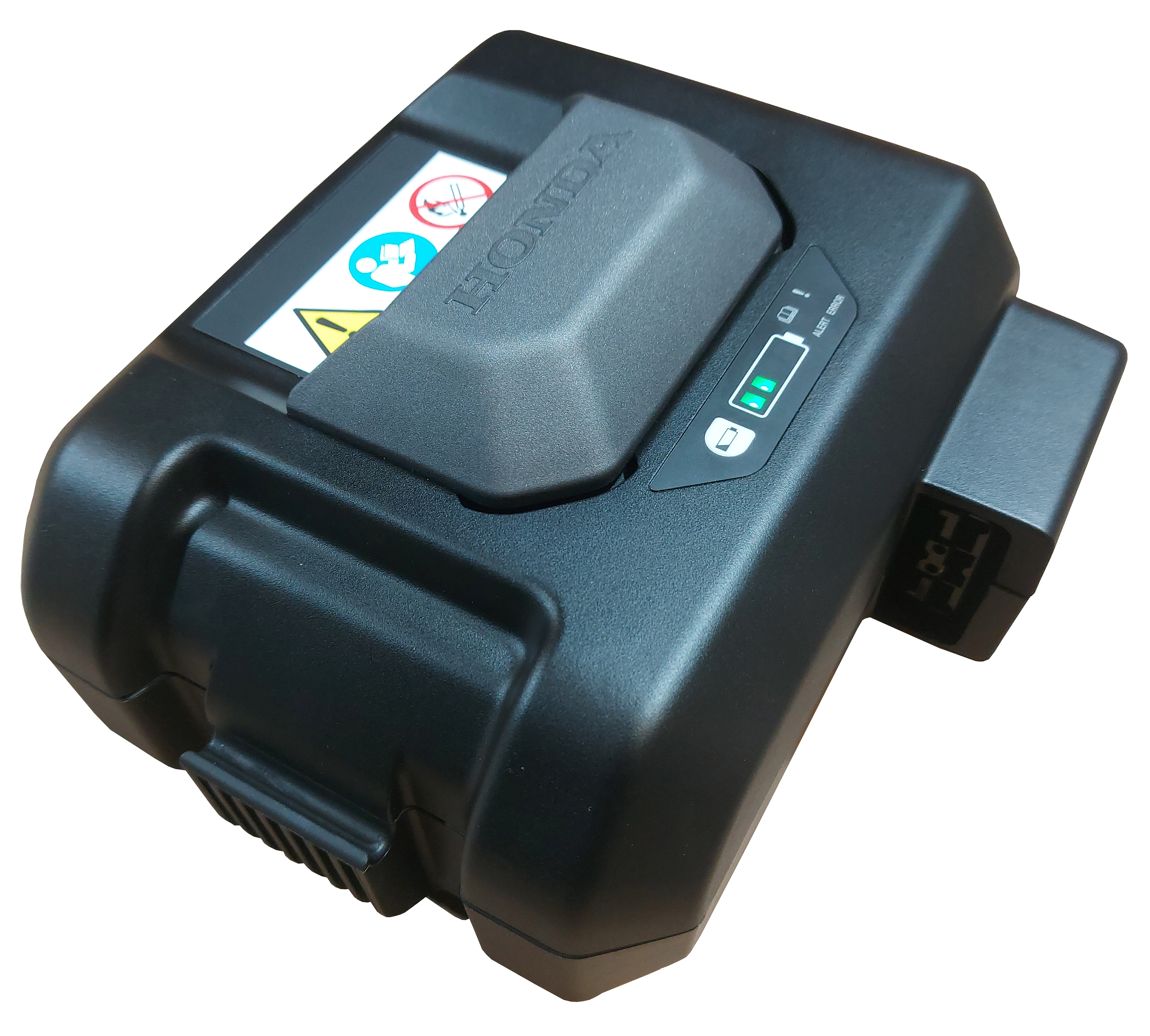

OPP/108/DIO eGX Battery -


OPP/109/DIOOPP/109/DIO eGX Battery Storage Box (Stores 1 x eGX Battery) -


OPP/110/DIO eGX Battery Charger (UK Plug) -


OPP/117/DIO eGX Battery Charger (EU Plug) -
OPP/111/DIO Charger Storage Box -

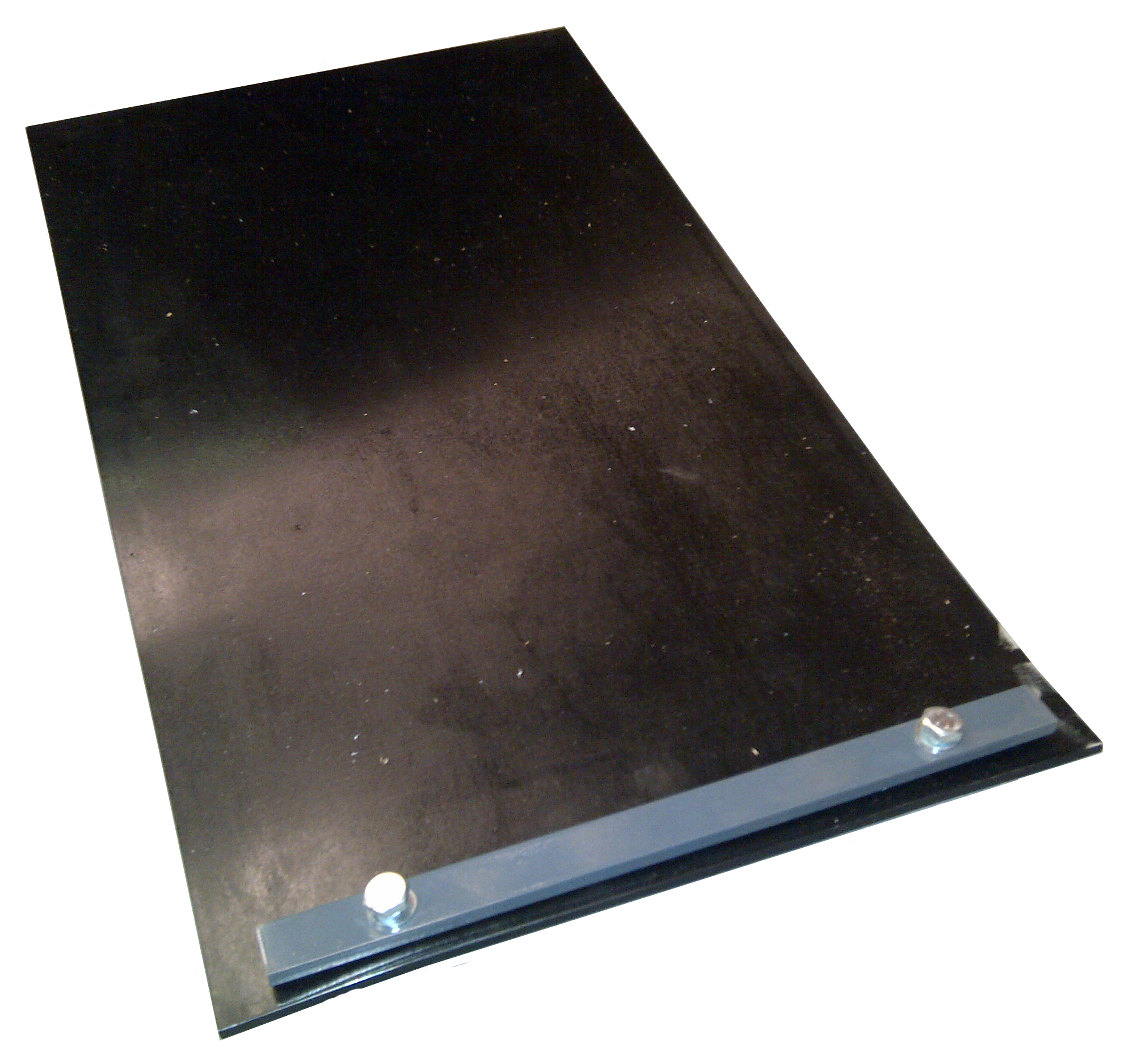

OPP/66/DIO Block Paving Pad -


OPP/71S/DIO Water Spray Kit 13/40 -

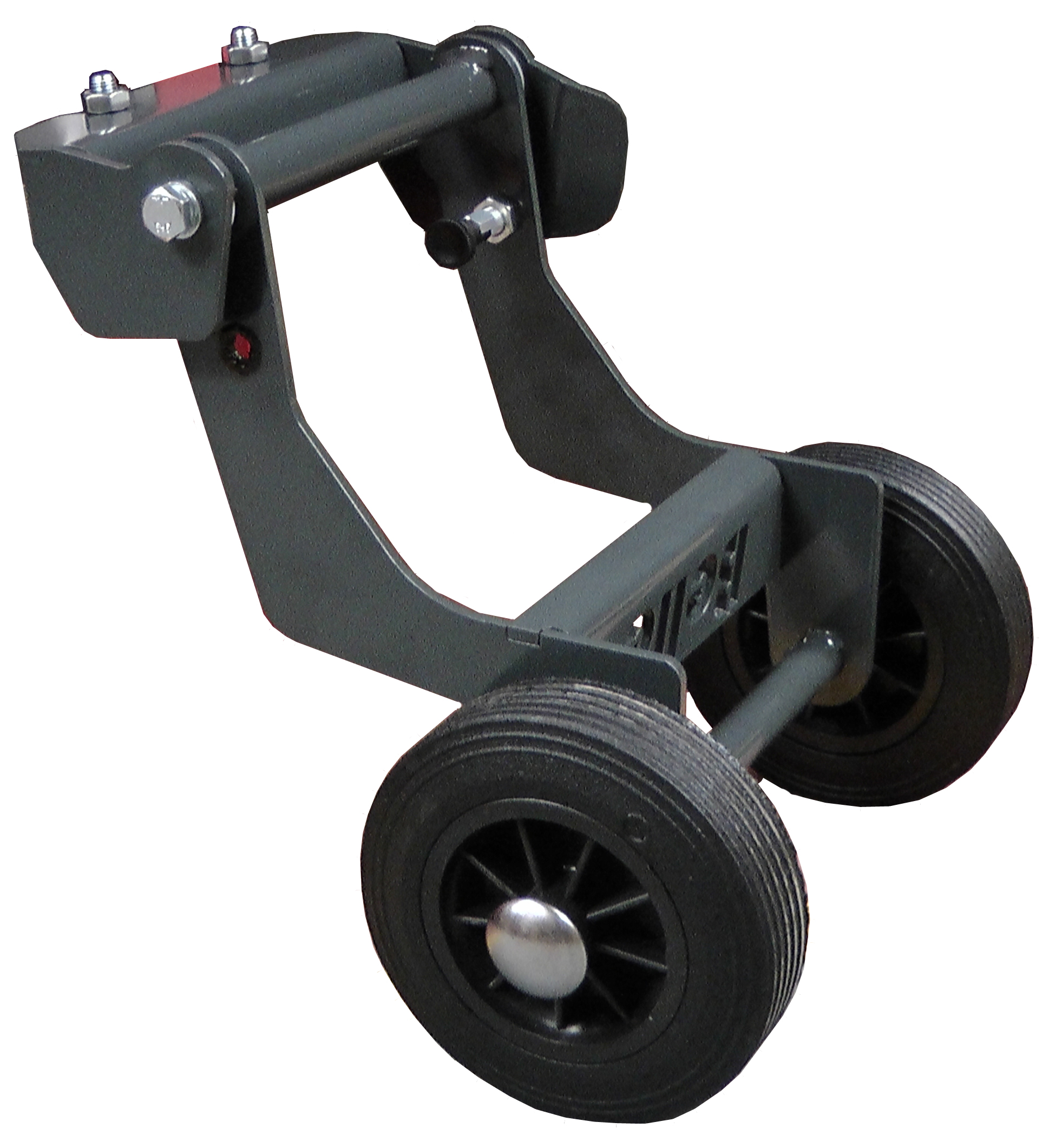

OPP/112/DIO Fixed Wheel Kit -
