WPX 3/30
WPX 3/30

3" Semi-Trash Water Pump

The WPX 3/30 is a durable, powerful, petrol engine driven, 3” semi-trash water pump designed for a variety of residential, commercial and agricultural tasks. It is suitable for sandy or muddy water and debris up to 1” in diameter.
WPX 3/30 image 0 WPX 3/30
Advantages
  • Suitable for pumping sandy or muddy water and debris up to 1” (25.4mm) in diameter.
  • Robust large diameter frame for the harshest conditions.
  • Stackable frame design with single point lifting to reduce environmental impact and minimize manual handling risk. Complete with securing pin for added safety.
  • Can be stacked with Altrad Belle GPX 2700 & GPX 3400 Generators.
  • Protection belly plate to aid use on soft ground.
  • Cast-iron volute and impeller for long life performance and durability.
  • High output capacity of 1000 ltr/min.
  • Max. head height of 30m for use in a wide range of applications.
  • Max. suction lift of 6m.
  • Powerful Loncin/Belle G200F petrol engine.
  • 3” suction and discharge ports.
  • Removeable side guards for ease of access to service points.
  • Easy to maintain and remove blockages on-site without tools.
  • Customer colour options available.
Ref Model Engine
Model		 Engine
Power
(Hp/kW)		 Suction
Port Dia.
(In / mm)		 Discharge
Port Dia.
(In / mm)		 Max. Suction Lift (m) Max. Total Head (m) Max. Flow Rate (ltr/min) Displacement
(mm)		 Fuel Tank Capacity
(Ltr)		 Oil Capacity
(Ltr)		 Weight
(kg)
WPX330L01 WPX 3/30 Loncin/Belle G200F 5.5 / 4.1 3 / 80 3 / 80 6 30 1000 196 3.6 0.6 44

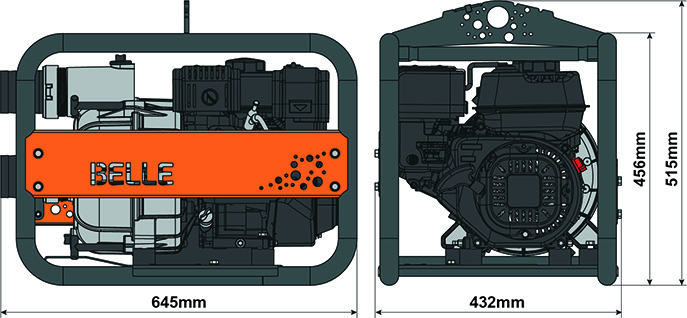

STATIC DIMENSIONS


Product Brochure
 WPX 3/30 product brochure - en

Currently no videos for this product

Ref Model Weight
(kg)		 Buy Now
35/0018 3" x 6m Suction Hose -
35/0019 3" x 30m Hose -
165.0.169 3" x 10m x Layflat/Delivery Hose -
35/0020 3" x 30m x Layflat/Delivery Hose -
WPX/99917 Straight Hose Coupler -
3/7100 3" Band Clamp -
OPB/04/DIO 3" Firemans Coupling Kit -

Click here for spare parts.
