Ranger 450
Ranger 450

400-450mm Contractors, Rental and Professional Floor Saw

High capacity saw, heavy duty steel chassis, this rugged machine meets demands of tough materials and applications for long and trouble free operations. The Ranger 450 is a very productive saw for all floor and road applications in concrete and asphalt. Accurate control and good stability ensures smooth cutting and reduces blade wear. An ideal machine for rental and endurance.
Ranger 450 image 0 Ranger 450
Advantages
  • Accurate easy moving 'Hand Wheel' depth adjustment
  • Corrosion resistant water tank 50 litres
  • Easy to operate and accelerate-efficient weight distribution
  • Central lift points and handles fitted as standard
  • Cutting depth gauge with indicator for both 400 & 450mm blades and cut -pointer guide fitted as standard
  • Petrol Honda or Diesel Lombardini
Ref Model Motor
Power
(Hp/kW)		 Blade
Size
(mm)		 Max. Depth
of Cut
(mm)		 Width
(mm)		 Height
(mm)		 Length
(mm)		 Weight
(kg)
RAN01 Ranger 450 Floor Saw
Honda GX390 Orange		 13 / 9.6 400 x 25.4
450 x 25.4		 120
160		 650 950 1250 126
RAN02 Ranger 450 Floor Saw
Lombardini 15LD440 Orange		 11 / 8.1 400 x 25.4
450 x 25.4		 120
160		 650 950 1250 140
RAN03 Ranger 450 Floor Saw
Lombardini 15LD440 Yellow		 11 / 8.1 400 x 25.4
450 x 25.4		 120
160		 650 950 1250 140

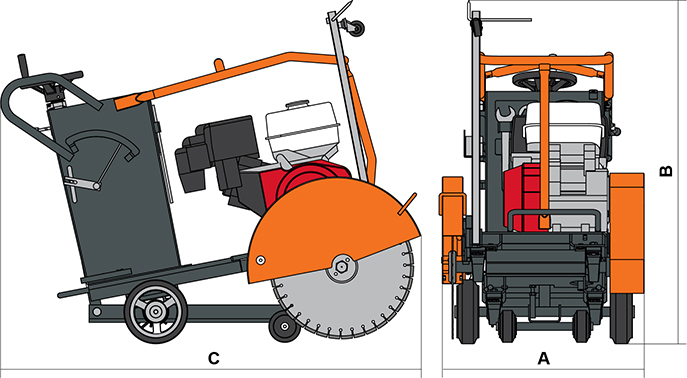

STATIC DIMENSIONS

    Ranger 450
A - Machine Width (mm) 650
B - Machine Height (mm) 950
C - Machine Length (mm) 1250
Operator Manuals
 Ranger 450 operator manual - en
Product Brochure
 Ranger 450 product brochure - en

Currently no videos for this product

Currently no options for this product

Click here for spare parts.
