Minimix 150
Minimix 150

Compact tip up professional mixer

A range of mixers for the professional and rental users. Built for site durability, these are quality, portable mixers for all small to medium building projects. The number one choice for mixers worldwide.
Minimix 150 image 0
Advantages
  • Compact and portable for easy transportation.
  • Mixes a full barrow load of concrete or mortar.
  • Complete with barrow height swivel and stand.
  • Full thermal overload protection.
  • Proven robust and durable design.
  • Extra thick drum with quick mix paddles.
  • Heavy-duty sealed cast gearbox for longer life.
  • Large choice of engines and electric motors to suit the user.
  • Electric or petrol options available.
  • Variable throttle on petrol variants.
  • Enclosed Electric motor, sealed to IP 45.
  • CE compliant, with NVR (No Volt Release) safety power switch
Ref Model Engine / Motor Engine / Motor Power (hp / kW) Drum
Volume
(litre)		 Mixing
Output
(litre)		 Drum
Speed
(rpm)		 Dimensions Noise Level
(dB(A))		 Weight
without stand*
(kg)
off stand (mm)
W H L
M54B Minimix 150 Honda GX120 Petrol 4.0 / 2.9 130 90 10-24 597 890 1211 92 61
M73B Minimix 150 Loncin H135 Petrol 3.5 / 2.6 130 90 10-24 597 890 1211 92 61
M22B Minimix 150 110v (60Hz) 0.75 / 0.55 130 90 24 597 890 1211 84 55.5
M12B Minimix 150 110v (50Hz) 0.75 / 0.55 130 90 24 597 890 1211 84 55.5
M18BE Minimix 150 230v
Euro 1		 0.75 / 0.55 130 90 24 597 890 1211 84 55.5
M16B Minimix 150 230v (50Hz)  0.75 / 0.55 130 90 24 597 890 1211 84 55.5
*Weight stand: 9.5kg
CMS12SP Replacement Mixing Drum Will fit all Pre 1999 Mini 140/150’s, the current Mini mixer 150 and the Maxi 140

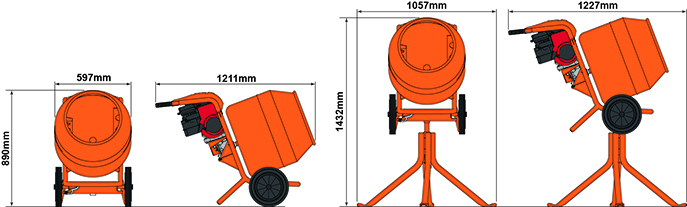

STATIC DIMENSIONS


Operator Manuals
 Minimix 150 operator manual - en
Product Brochure
 Minimix 150 product brochure - en

Currently no videos for this product

Currently no options for this product

Click here for spare parts.
