PCX 20/45 & 20/50
PCX 20/45 & 20/50

Heavyweight Plate Compactors

Used for soil compaction on new developments, repairs and maintenance jobs with large aggregates, cohesive material or moist content. This plate is a hard hitting but user friendly machine in the heavy weight class. PCX20/50 has outstanding compaction features and is the heaviest forward plate compactor in the range.
PCX 20/45 & 20/50 image 0 PCX 20/45 & 20/50
Advantages
  • Compaction all-rounder for soils, asphalt and pavements, a plate with unlimited possibilities
  • The optimum vibratory plate for finishing or patching a surface
  • Highest degree of operator comfort: patented vibration neutralization of the operating handle
  • Wear and fracture resistant cast base plate, even during continuous load applications, manufactured out of extremely resistant cast iron (GJS-700)
  • The sturdy protective frame makes this plate resistant to rough treatment or mechanical shocks
  • Powered by Honda
  • Paving pad available as an accessory
Ref Model Engine
Power
(hp/kW)		 Static
Pressure
(kg/m2)		 Centrifugal
Force
(kN)		 Travel
Speed
(m/min)		 Vibration
(m/sec2)		 Dimensions
(W x L x H)		 Weight
(kg)
FC4500E PCX 20/45 Honda
GX160 Petrol		 5.5 - 4.0 463 20 26 3.5 450 x 1167 x 987 91
FC4515E PCX 20/45 Hatz
1B20 Diesel		 4.6 - 3.5 585 20 25 2.64 450 x 1167 x 987 115
FC5000E PCX 20/50 Honda
GX160 Petrol		 5.5 - 4.0 442 20 25 3.5 500 x 1167 x 987 97
FC5015E PCX 20/50 Hatz
1B20 Diesel		 4.6 - 3.5 547 20 24 2.45 500 x 1167 x 987 120

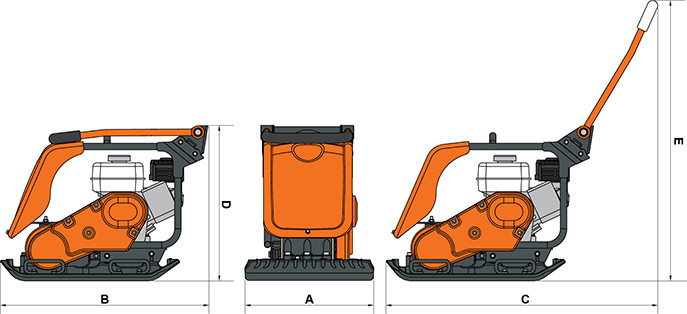

STATIC DIMENSIONS


    PCX 20/45 PCX 20/50
A - Machine Width (mm) 450 500
B - Machine Length Storage (mm) 880 880
C - Machine Length Operating (mm) 1167 1167
D - Machine Height Storage (mm) 585 585
E - Machine Height Operating (mm) 987 987
Operator Manuals
 PCX 20/45 & 20/50 operator manual - en
Product Brochure
 PCX 20/45 & 20/50 product brochure - en

Currently no videos for this product

Ref Model Weight
(kg)		 Buy Now
OPP/30/DIO Block Paving Pad PCX 20/45 4.0

OPP/82/DIOOPP/01/DIOOPP/01/DIOOPP/32/DIO Block Paving Pad PCLX 320Block Paving Pad PCX 20/50 1.0

OPP/35/DIO Fixed Wheel Kit 4.5

OPP/48S/DIO Water Kit PCX 20/45 3.5

OPP/49S/DIO Water Kit PCX 20/50 3.5

OPP/50/DIO Detachable Wheel Kits 4.8
