RPX 59
RPX 59

59kN Range of Reversible Plate Compactors

NEW heavy duty range of reversible plate compactors built to withstand the harshest site conditions. With improved baseplate design for excellent gradability & increased travel speeds and a higher compaction force for shorter usage times and deeper compaction. Complete with Hourmeter as standard on Diesel Electric Start & Petrol models and Extension Width options available for more versatility. The perfect solution for the rental market. Available with Honda petrol, Hatz diesel or Hatz diesel electric engine options.
RPX 59 image 0 RPX 59
Advantages
  • Robust design for long-life and use in the harshest site conditions.
  • Petrol & Diesel models to suit all kind of applications.
  • Electric start with key ignition & LED warning lamps, eliminates need for operator training associated with manual starting (Hatz models only)
  • Control Handle & Additional Fixed Handle with strong locking:- - More positive handling & control. - Reduces shock loading on control handles.
  • Angled baseplate for excellent gradability and travel speeds.
  • Low HAV handle, safe for operators to use for long periods.
  • High Compaction force for fast work and deepcompaction.
  • Handle mounted throttle, perfect for the operator.
  • High performance battery (Hatz Electric Start only).
  • Cyclone Air Filter as standard on Honda GX390 model.
  • Hourmeter as standard on Petrol and Diesel Electric models.
  • Specifically designed for hire and rental markets.
  • Extension Plates available to give 650mm or 750mm width base plates.
Ref Model Engine
Power
(hp/kW)		 Engine
RPM		 Plate Size
WxL
(mm)

Plate Contact
Area
(mm)

 Static
Pressure
(kg/m2)		 Centrifugal
Force
(kN)		 Frequency
(Hz)		 Max
Gradient
(°)

Travel Speed
(m/min)

 Weight
(kg)
161.9.214 RPX 59/65 Honda GX390 Petrol -
9.4 / 7.0		 3000 650 x 945 650 x 460 1241 59 70 20 28 360
161.9.212 RPX 59/65 Hatz 1D50 Diesel -
10.7 / 7.9		 3000 650 x 945 650 x 460 1420 59 70 20 28 412
161.9.213 RPX 59/65 Hatz 1D50 Diesel Electric -
10.7 / 7.9		 3000 650 x 945 650 x 460 1524 59 70 20 28 442
161.9.218 RPX 59/75 Honda GX390 Petrol -
9.4 / 7.0		 3000 750 x 945 750 x 460 1102 59 70 20 28 375
161.9.216 RPX 59/75 Hatz 1D50 Diesel -
10.7 / 7.9		 3000 750 x 945 750 x 460 1256 59 70 20 28 427
161.9.217 RPX 59/75 Hatz 1D50 Diesel Electric -
10.7 / 7.9		 3000 750 x 945 750 x 460 1344 59 70 20 28 457

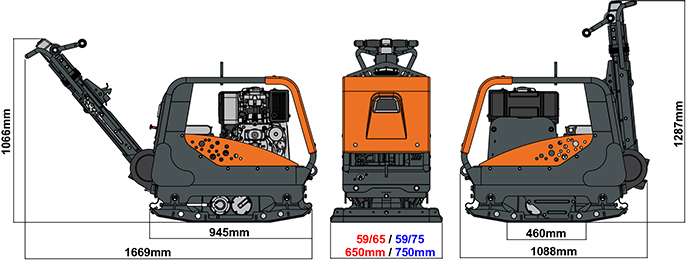

STATIC DIMENSIONS


Product Brochure
 RPX 59 product brochure - en

Currently no videos for this product

Ref Model Weight
(kg)		 Buy Now
OPP/106/DIO 75mm Extension Plates 17.

OPP/82/DIOOPP/01/DIOOPP/01/DIOOPP/107/DIO Block Paving Pad PCLX 320125mm Etension Plates 25.
