DX 1000HT
DX 1000HT

1-Tonne Hi-Tip Dumper

The BRAND NEW DX1000 HT is the new No.1 Best in Class 1-tonne high-tip dumper. Designed to be owned by a rental company or professional operator. The DX 1000HT sets new standards for safety, strength, operator comfort and convenience and productivity on site. With a proven, reliable Yanmar 3TNV76, 3 cyclinder, Diesel engine - perfect for this application.

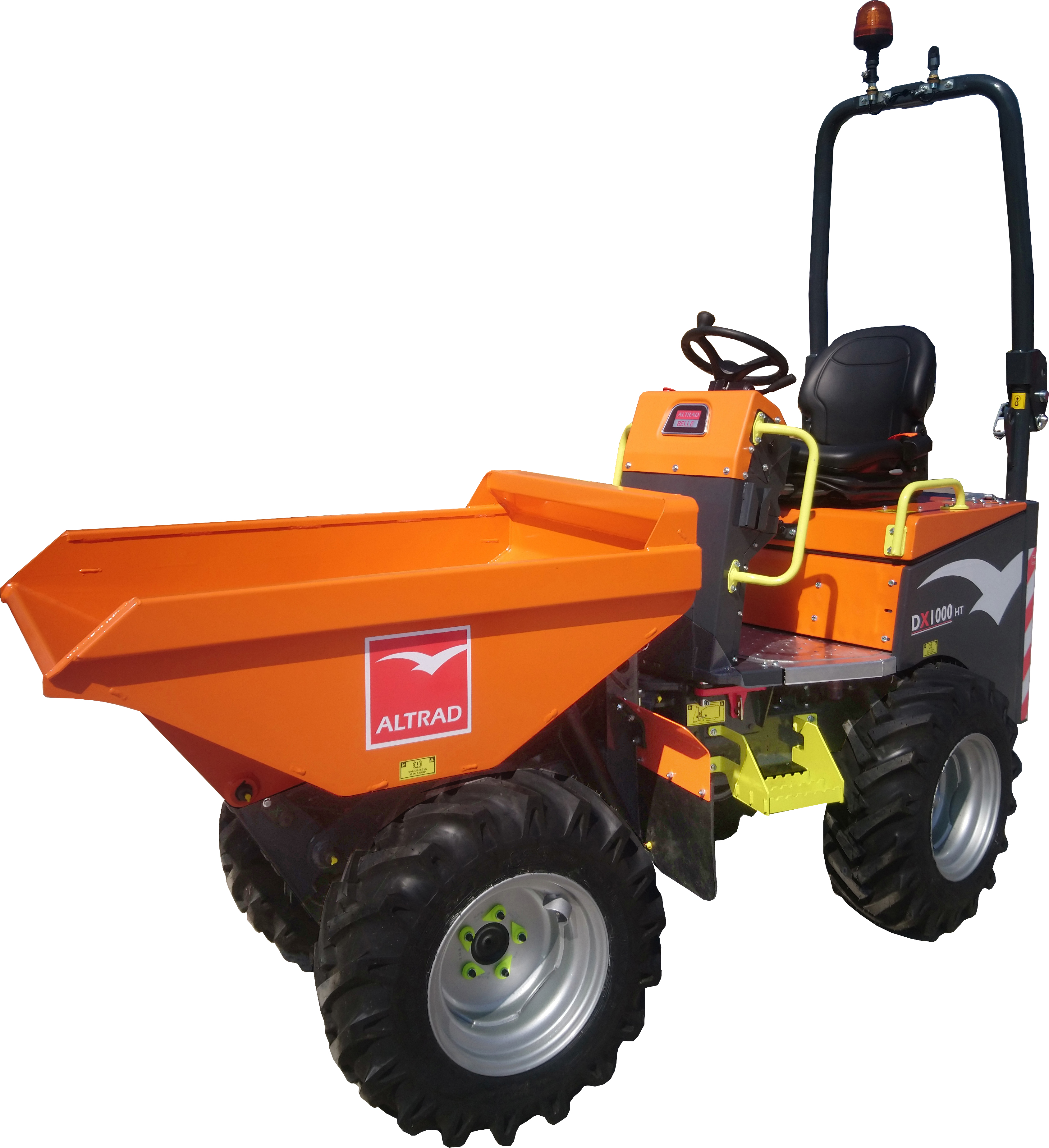

DX 1000HT image 0 DX 1000HT
Advantages

  • Operator Comfort and Convenience

  • Fuel level is visible while in the operator's seat, saving time & improving safety & down time.
  • Increased leg room for improved operator comfort.
  • USB phone charger point, allowing charging while the work is done.
  • Leading brand, comfort seat compliant to latest standards EN ISO 7096 for this type of equipment. Reduces operator Strength
  • Robust, easy-clean skip with fully returned edges preventing dirt ingress / concrete accumulation, reducing down time and cleaning costs.
  • Strengthened chassis rails to increase durability.
  • High quality, shot-blast and 2-layer powder coated paint finish for the most demanding site Maximising resale values.
  • Bushed & greased steering pivot cylinder, preventing wear on the main components, cost efficient for the owners.
  • Steel belly pan protector prevents damage to hydraulic circuit.
  • Front enclosure / infill plate reduces stone / mud ingress meaning less down time & cleaning required.
  • Steering Ram - Hose guard cover plate to prevent damage.
  • Hi-quality leading brand all-terrain tyres fitted with valve protect guard, to reduce down time on site and increase productivity.

    Productivity

  • The Altrad full 4 wheel drive system hydraulic system gives increased traction on poor terrain and excessive mud. Better gradeability, increased productivity and less servicing.
  • Reliable, Yanmar 3TNV76, water-cooled Diesel engine - perfect for this application.
  • Market leading fuel tank capacity, reduces amount of fill-ups and down time.
  • Unique fuel level indicator window together with a low fuel level warning light allows for easy inspection and assist in ensuring rental & machine productivity high.
  • Low hydraulic fluid level warning light reducing system damage and down time.
  • Extensive use of hose clamp retainers to prevent pipe fretting and rubbing, reducing hose failures and maintenance costs.
  • Fuel and Hydraulic tank drain points reducing tank flushing time in the event of contamination or servicing.
  • Fuel - water separator reducing engine damage and down time.
  • Central Hydraulic hoses enables increased protection, reducing the risk of down time.
  • Under footplate - stone guards preventing stone/mud ingress, so less down time & cleaning required.

    Safety

  • Emergency Stop Button for increased safety.
  • Tight turning circle allows better manoeuvrability on tight work sites, reducing shunting and increasing safety, productivity & efficiency.
  • Hi-viz access points & anti-slip foot-steps reduces slips, trips and falls when climbing on and off machine. Easily replaceable in case of an impact.
  • Auto retracting seat belt prevents entanglement. Bright Orange for safety with increased visibility.
  • Safe heavy duty, easy to deploy steering lock out bar, makes workshop and transport actives safer.
  • Check Point visual wheel nut indicators make daily checks simpler to perform, reducing machine down time.
  • Enclosed document box to retain machine safety documents reducing possibility of being damaged / misplaced.
  • Lockable seat pan - gas strut c/w lock out reduces chance of head / trapping injuries.
  • Anti-slip, hot-dipped galvanised floor plate for safety and long life.
  • Hazard warning chevrons on rear of dumper for increased machine visibility on site to others.
  • Priority / safety steering valve that gives priority to the steer function in the event of low hydraulic fluid pressure or flow, therefore maintain-highest levels of machine safety at all times.
DX 1000 1-TONNE HI-TIP DUMPER
Part Number   DX10HYSA

PERFORMANCE
Payload (kg) 1000
Unladen Weight (kg) 1363
Tipping Type   Front Tip - High
Turning Circle of Skip (mm) 2637
Turning Circle of Tyres (mm) 2524
Steering Angle (°) 39.7
Body Oscillation Angle (°) 15

CAPACITIES
Skip - Water (Ltr) 280
Skip - Struck (Ltr) 400
Skip - Heaped (Ltr) 500
Fuel Tank (Ltr) 35
Hydraulic Oil Tank (Ltr) 18

ENGINE
Engine Model   Yanmar 3TNV76
Type   Diesel
No. of Cylinders   3
Gross Power (Hp/kW) 21.4 / 15.9
Displacement cc (cc) 1116
Max. Torque (Nm) 66.4

HYDRAULIC SYSTEM
Pump Type   Gear Pump
Flow Rate (l/min) 30
Operating Pressure (bar/PSI) 140
Steering Sytem   Hydraulic

BRAKING SYSTEM
Working Brake Hydrostatic Dynamic Breaking
Parking Brake Failsafe Automatic

TRANSMISSION / DRIVE
Transmission Type Hydrostatic Pump to 4 radial
piston Hydraulic Motors
Tyre Size   255 / 75 -15.3
Drive   Hydrostatic
Max. Travel Speed (Unladen) (kph) 12
Max. Gradient   25% (4:1)

ENVIRONMENTAL
Sound Pressure (LpAd) 84
Sound Power Level (LWAd) 101
Noise Emission (to ISO 4871)

ELECTRICAL SYSTEM
System Voltage (V) 12
Battery Capacity (Ah) 44
Alternator Output (A) 40

STANDARD EQUIPMENT

Folding ROPS Frame
Reversing Alarm
Flashing Orange Beacon
Hourmeter
Seat Belt (Hi-Viz Orange)
Adjustable Seat
Heavy Duty Articulation Lock
Wide Tyres
STATIC DIMENSIONS

    Standard Wheels cw Wheel Spacers
A1 - Overall Length (mm) 3190 3190
A2 - Overall Length (ROPS Folded) (mm) 3330 3330
B - Wheel base (mm) 1440 1440
C - Minimum ground clearance (mm) 250 250
D - Track width (mm) 850 950
E - Width over tyres (mm) 1100 1200
F - Height to top of ROPS (raised, with/without beacons) (mm) 2545 / 2800 2545 / 2800
G - Height to top of ROPS (folded) (mm) 1630 1630
H - Dump Height (untipped/tipped) (mm) 1820 / 2960 1820 / 2960
J - Height to front lip of dumper body (untipped, lowered/raised) (mm) 1110 / 2270 1110 / 2270
K - Height to front lip of dumper body (tipped, lowered/raised) (mm) 400 / 1540 400 / 1540
L - Discharge distance front (lowered/raised) (mm) 520 / 380 520 / 380
M - Dumper body tip angle (°) 81 81
N - Departure angle (°) 38 38
Product Brochure
 DX 1000HT product brochure - en



Ref Description Buy Now
OPD/20/DIO Work Lights x 2
OPD/21/DIO Work Lights x 4
OPD/22/DIO Green Beacon
OPD/24/DIO Tow Hitch (Off-Highway Towing only)
OPD/25/DIO UK Road Kit
OPD/28/DIO 50mm Wheel Spacers x 4
