PCX 16/45 & 16/50
PCX 16/45 & 16/50

Heavyweight Plate Compactors

Heavyweight professional compaction plates with low Hand Arm Vibration levels, very high performance compaction and travels speeds.
PCX 16/45 & 16/50 image 0 PCX 16/45 & 16/50
Advantages
  • High performance 16kN vibration unit for excellent travel speed.
  • High Compaction Force reduces usage times
  • Engineered to be robust and durable for rental and heavy contractor use.
  • Heavy Duty Remote Throttle.
  • Strong protective frame as standard.
  • Integrated Quick Engage Wheel Kit.
  • Large diameter Wheels to aid transportation on rough terrain.
  • Quick Locating Handle Latch for increased stability whilst operating the Wheel Kit.
  • Low HAV handles that still allow precision control.
  • 8mm thick long life base plate for optimum compaction and reliability.
  • Pull Bar for increased manoeuvrability.
  • Optional Easy-Fit 12-litre Water Tank & Easy-Clean Spraybar system with durable metallic Water Control Tap for high flow rate.
Ref Model

Engine
Power
(Hp - kW)

Vibrator
Force
(kN)

 Static
Pressure
(kg/m2)		 Max.
Gradient
(°)		 Travel
Speed
(m/min)		 Vibration
Level
(m/sec2)		 Weight
(kg)		 Operating
Dimensions
(W x L x H)
(mm)
 MC4501 PCX 16/45
Honda Petrol		 5.5 - 4.0 16 478.8 20 21 2.87 90.5 450 x 1065 x 995
MC4551 PCX 16/50
Honda Petrol		 5.5 - 4.0 16 435.7 20 21 2.87 91.5 500 x 1065 x 995

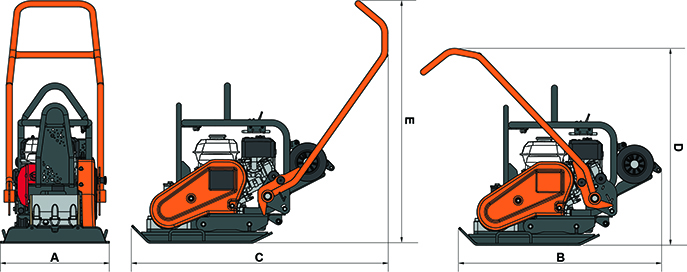

STATIC DIMENSIONS


    PCX 16/45 PCX 16/50
A - Machine Width (mm) 450 500
B - Machine Length Storage (mm) 995 995
C - Machine Length Operating (mm) 1065 1065
D - Machine Height Storage (mm) 995 995
E - Machine Height Operating (mm) 995 995
Operator Manuals
 PCX 16/45 & 16/50 operator manual - en
Product Brochure
 PCX 16/45 & 16/50 product brochure - en

Currently no videos for this product

Ref Model Weight
(kg)		 Buy Now
OPP/89/DIO Block Paving Pad 16/45 2.3


OPP/82/DIOOPP/01/DIOOPP/01/DIOOPP/100/DIO Block Paving Pad PCLX 320Block Paving Pad PCLX 400 2.3


OPP/90/DIO Detachable Wheel Kit 2.5
