PCLX 16/45E
PCLX 16/45E

Heavyweight Electric Plate Compactor

A heavyweight professional plate with excellent performance and travel speed from the 16kN vibration unit.Designed with an environmentally friendly Electric Motor for use indoors and poorly ventilated areas.
StockcodeDescription
MCE4501PCLX16-45E - 110V - ORANGEBuy it now
PCLX 16/45E image 0 PCLX 16/45E
Advantages
  • High performance 16kN vibration unit for excellent travel speed.
  • High Compaction Force reduces usage times.
  • Engineered to be robust and durable for rental and heavy contractor use.
  • Environmentally friendly, 2.2kW zero emission Electric Motor for use indoors & in poorly ventilated areas.
  • Low HAV design for longer, safe usage times.
  • Efficient Electric Motor is ideal for night time and urban usage.
  • Centrifugal Clutch for soft start & reduced current surge.
  • Professional 32amp power inlet for effective cable management.
  • Large sealed oil-filled vibrator with top quality bearings for reliability and durability.
  • Integrated Quick Engage Wheel Kit with Large diameter Wheels to aid transportation on rough terrain.
  • Quick Locating Handle Latch for increased stability whilst operating the Wheel Kit.
  • 8mm thick long life base plate for optimum compaction and reliability.
  • Pull Bar for increased manoeuvrability.
  • No fuel or engine maintenance and higher return on investment.
  • Class 1 Earthed Appliance.
  • Integrated Motor protection frame.
  • Block Paving Pad option available.

NOTE: For use with Extension Cables up to 25M in length - Extension Cable is not supplied with this product.

Ref Model

Motor
Power
(Hp - kW)

Minimimum
Transformer
Size (kVA)

Plate
Contact
Area
(mm)

Static
Pressure
(kg/m2)
Max.
Gradient
(°)
Centrifugal
Force
(kN)
Travel
Speed
(m/min)
Vibration
Level
(m/sec2)
Weight
(kg)
Buy Now
 MCE4501 PCLX 16/45E 110v 50Hz 3.0 - 2.2 5.0 450 x 420 517 20 16 27 3.04 97

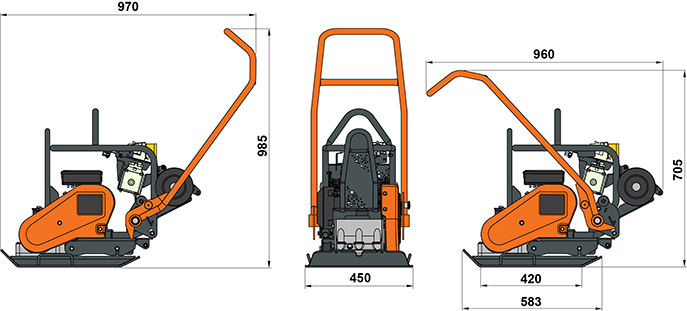

STATIC DIMENSIONS
Operator Manuals
 PCLX 16/45E operator manual - en
Product Brochure
 PCLX 16/45E product brochure - en

Currently no videos for this product

Ref Model Weight
(kg)
Buy Now
OPP/89/DIO Block Paving Pad PCLX 16/45E 2.2
