PCX 17/50A
PCX 17/50A

Special Delta Plate Compactor

A single direction plate designed ultimately for compaction of asphalt and Macadam surfaces. This plate compactor features a special tapered base plate to help avoid track marks.
PCX 17/50A image 0 PCX 17/50A
Advantages
  • Extremely accurate with a small turning radius on Asphalt.
  • Specially engineered Delta style Baseplate for high performance.
  • Heavy Duty Remote Throttle.
  • Strong protective frame as standard.
  • Integrated Large 12 Litre Capacity Water Tank.
  • Highly accurate water distribution from Spray Bar.
  • Handle Latch for increased stability whilst operating the Wheel Kit.
  • Integrated Quick-Engage Wheel Kit.
  • Large diameter Wheels to aid transportation on rough terrain.
  • Durable metallic Water Control Tap for high flow rate.
  • Low HAV handles that still allow precision control.
  • Fast travel speed.
Ref Model

Engine
Power
(Hp - kW)

Vibrator
Force
(kN)

Frequency
(Hz)

 Compaction
Force
(kg/m2)		 Max.
Gradient
(°)		 Travel
Speed
(m/min)		 Vibration
Level
(m/sec2)		 Weight
(kg)		 Operating
Dimensions
(W x L x H)
(mm)		 Storage
Dimensions
(W x L x H)
(mm)
 PCA01 PCX 17/50A
Honda Petrol GX120		 4.0 - 3.0 15 85 485 20 24 2.7 89 500 x 960 x 975 500 x 1025 x 685
PCA50 PCX 17/50A
Honda Petrol GX160		 5.5 - 4.4 15 85 485 20 24 2.7 90 500 x 960 x 975 500 x 1025 x 685

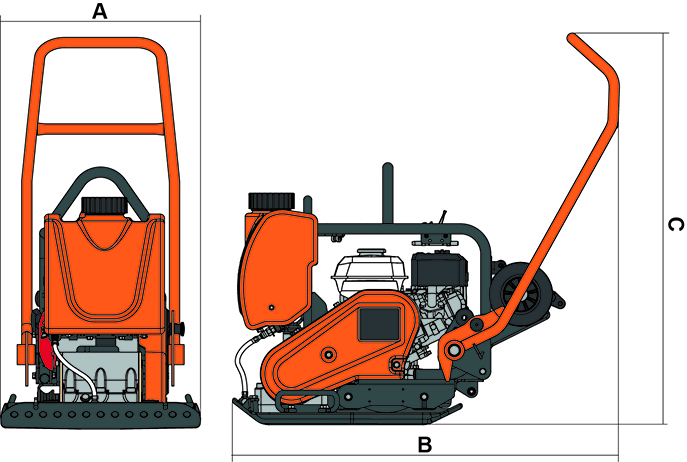

STATIC DIMENSIONS


    PCX 17/50A
A - Machine Width  (mm) 500
B - Machine Length - Operating (mm) 960
C - Machine Height - Operating (mm) 975
Machine Length - Storage (mm) 1025
Machine Height - Storage (mm) 685
Operator Manuals
 PCX 17/50A operator manual - en
Product Brochure
 PCX 17/50A product brochure - en
