TDX 650A
TDX 650A

Walk behind duplex roller for soil and asphalt

A brand new Lightweight Twin-Drum Walk-Behind Roller with Hydrostatic drive system. The TDX 650A has a high compaction force but is also compact with well positioned controls making it easy to operate. Suitable for a wide range of soil and asphalt compaction applications.
TDX 650A image 0 TDX 650A
Advantages
  • Highly responsive, low-maintenance Hydrostatic drive system.
  • High-powered, reliable, 10hp Air-Cooled,Electric Start Yanmar Diesel engine or 6.9hp Water Cooled Electric Start Kubota EA330 engine.
  • 16kN high compaction force for productivity
  • Recoil Start back-up on Yanmar engine.
  • High-quality Hydraulic System components.
  • 65 litre Water Tank with external gauge.
  • Wall clearance on both sides with no overhang.
  • Self-cleaning, adjustable Scraper Bars.
  • 18 litre Hydraulic Oil Tank.
  • Easy access, removable, front and rear anticorrosive water sprinkler system.
  • Foldable handle with locking mechanism.
  • Easy to service - Remote Oil Drain. Remote Oil Fill. Air Cleaner Access.
  • Drain on Water Tank to prevent frost damage.
  • Centrally located Lifting Eye and 4 x Strapping/ Lifting Points.
  • Key Switch protection.
  • 2-layer factory powder coated components.
  • Customer colour options available.
  • Optional Hourmeter available.
Ref Model Engine
Power
(hp/kW)		 Starting
System		 Frequency
(vpm)		 Forward Travel
Speed (km/hr)		 Reverse Travel
Speed (km/hr)		 Force
(kN)		 Water Tank Capacity
(Ltr)		 Oil Tank Capacity
(Ltr)		 Weight
(kg)

650AYGRY4

 TDX 650A Twin Drum Roller Yanmar L100N Diesel
10 / 7.4		 Electric (with Recoil Start back-up option) 3300 > 3.9 > 2.1 16 65 16 675
650AKGRY4 TDX 650A Twin Drum Roller

Kubota EA330 Diesel
6.9 - 5.2

 Electric 3300 > 3.9 > 2.1 16 65 16 684

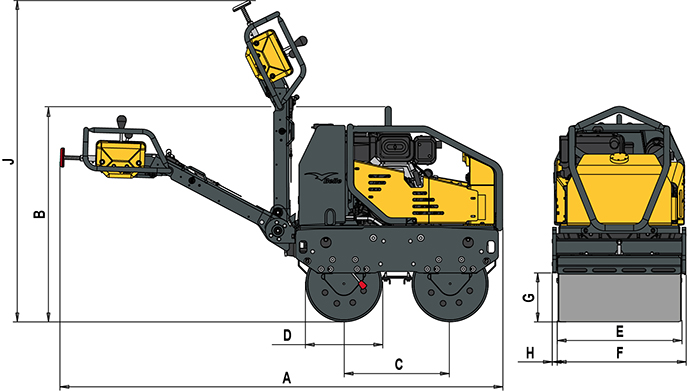

STATIC DIMENSIONS

    TDX 650A
A - Overall Length (mm) 2318
B - Overall Height (mm) 1137
C - Wheel Base (mm) 560
D - Drum Diameter (mm) 402
E - Drum Width (mm) 650
F - Overall Width (mm) 703
G - Curb Clearance (mm) 258
H - Lateral Overhang (mm) 26.5
J - Height at Storage (mm) 1678
Operator Manuals
 TDX 650A operator manual - en
Product Brochure
 TDX 650A product brochure - en

Currently no videos for this product

Ref Model Weight
(kg)		 Buy Now
OPR/04/DIO Hour Meter .5

Click here for spare parts.
