BMD 300 Minidumper
BMD 300 Minidumper

Pedestrian motorised, 4- wheel drive MiniDumper

The BMD motorized pedestrian 4-wheel drive Minidumper is designed for loading and transporting with speed, greater flexibility and maneuverability . It can accommodate all kind of loads, on any terrain, for various applications in construction as well as in landscaping and agricultural work.

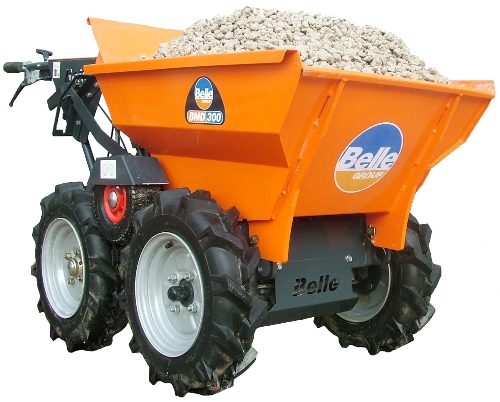

BMD 300 Minidumper image 0 BMD 300 Minidumper
Advantages
  • Strong heavy duty design and tipping mechanism, the BMD 300 can easily handle loads of up to 300kg with ease of controls
  • Climbing ability of up to 20 degree inclines
  • 4 wheel drive mode and removable centre wheel for service
  • Ergonomic design and in combination with speed and large productivity, the product can allow a multitude of applications

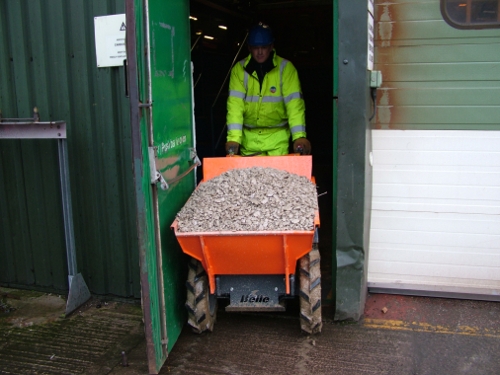

  • Ideal for small spaces, its dimensions allow passage through doorways and in confined spaces
  • Easy to move around, when turning or working on slopes
  • Gearbox with 4 forward gears. Also equipped with reverse gear and disc brakes
  • 4 x Multipurpose tyres
  • Faster, more flexible than a track driven dumper

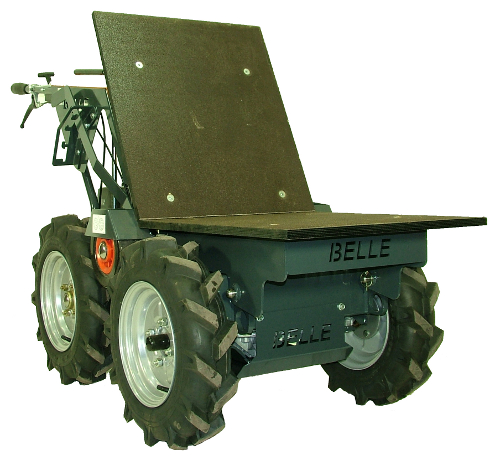

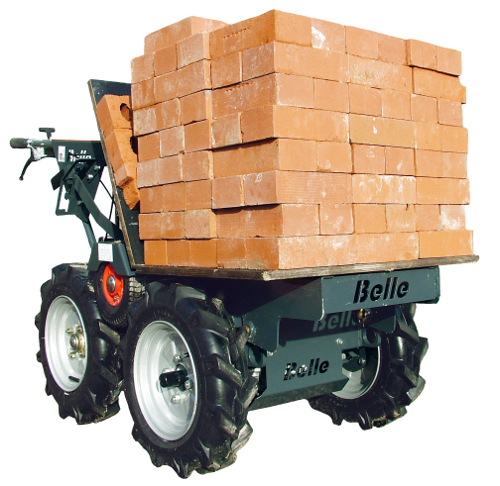

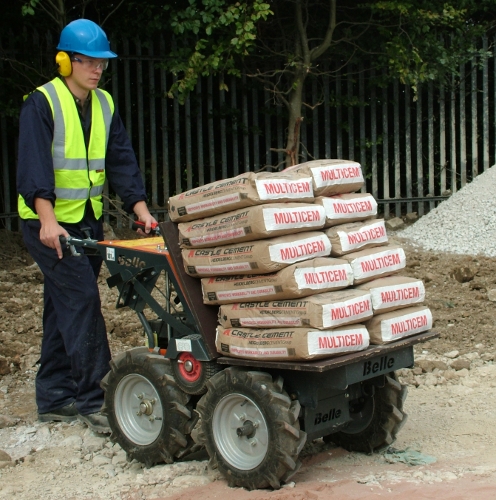

  • Quick changeover to flatbed mode

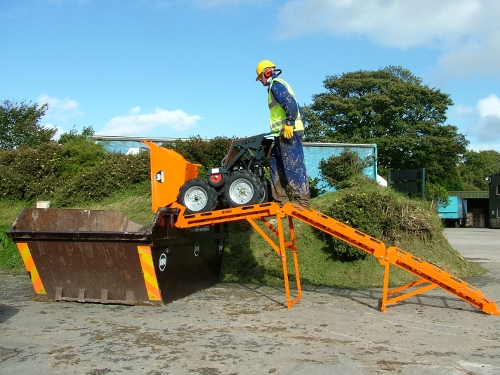

  • Loading ramp available as an option, foldable and easily transportable High grade components conforming to latest quality standards Designed to the latest European health and safety standards
  • User and service friendly, maximise operator productivity
  • Engine positioned to allow easy access and service.
  • The HONDA industrial engine GXV160 / 5.5Hp, conforms to the latest anti-pollution standards.
  • Equipped with parking disc brake for total operator security
  • Centre wheel engaging 4 wheel drive when loaded on rough terrain
  • The lower position of the skip permits fast tipping with no strain or operator fatigue.
  • Perfectly balanced when working with full load.
  • All 4 wheels are identically sized and easy to replace
  • Additional bearings to support axle and strengthening plate
  • Bottom protection plate to avoid damage by stones
  • Reduced maintenance
Ref Model Motor
Power
(Hp/kW)		 Fuel Tank
Capacity
(Ltr)		 Max. Travel
Speed - Fwd
(km/h)		 Max. Travel
Speed - Rev
(km/h)

Skip Capacity
- Level Filled
(litres)

 Skip Capacity
- Heaped
(litres)

Max.
Payload
(kg)

 Dimensions
(mm)		 Weight
(kg)
W H L
BMD01 BMD 300 c/w
Multi-purpose tyres

Honda Petrol
GXV160
5.5 / 4

 2.5 6 2.6 113 134 300 716 934 1609 155
BMD01T BMD 300 c/w

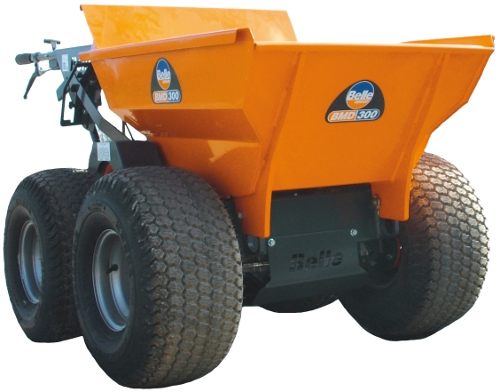

Flotation Turf Tyres		 1004 1609 195
Product Brochure
 BMD 300 Minidumper product brochure - en
