Advantages- Highly responsive, low-maintenance Hydrostatic drive system.
- High-powered, reliable, 10hp Air-Cooled Yanmar Diesel engine.
- 20kN high compaction force for productivity.

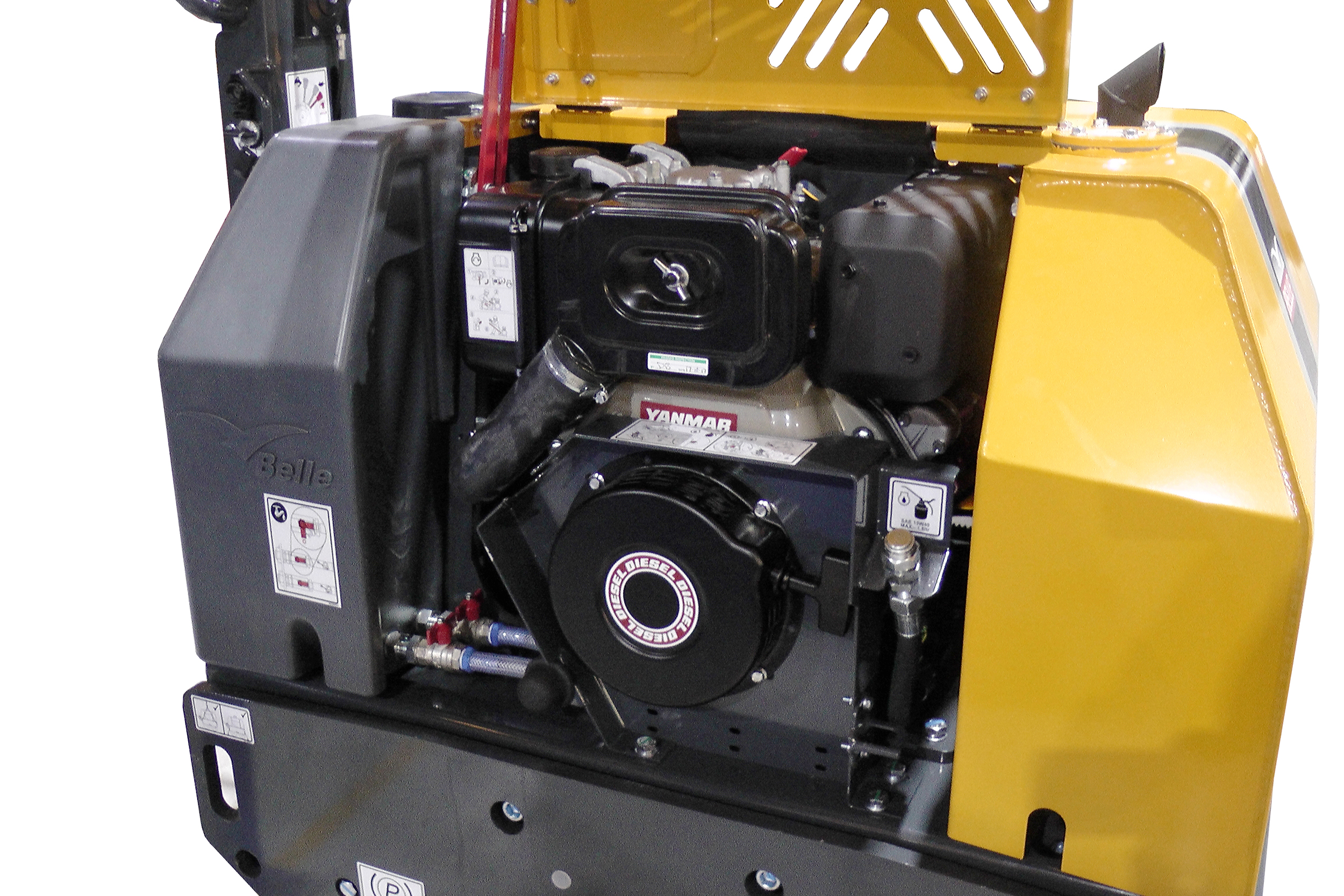

- Enclosed engine compartment with lockable canopy for secure, easy access.
- Recoil Start back-up.
- High-quality Hydraulic System components.
- 65 litre Water Tank with external gauge.
- Wall clearance on both sides with no overhang.
- Self-cleaning, adjustable Scraper Bars.
- 18 litre Hydraulic Oil Tank.
- Easy access, removable, front and read anti-corrosive water sprinkler system.
- Foldable handle with locking mechanism.
- Lockable Diesel fill access flap.

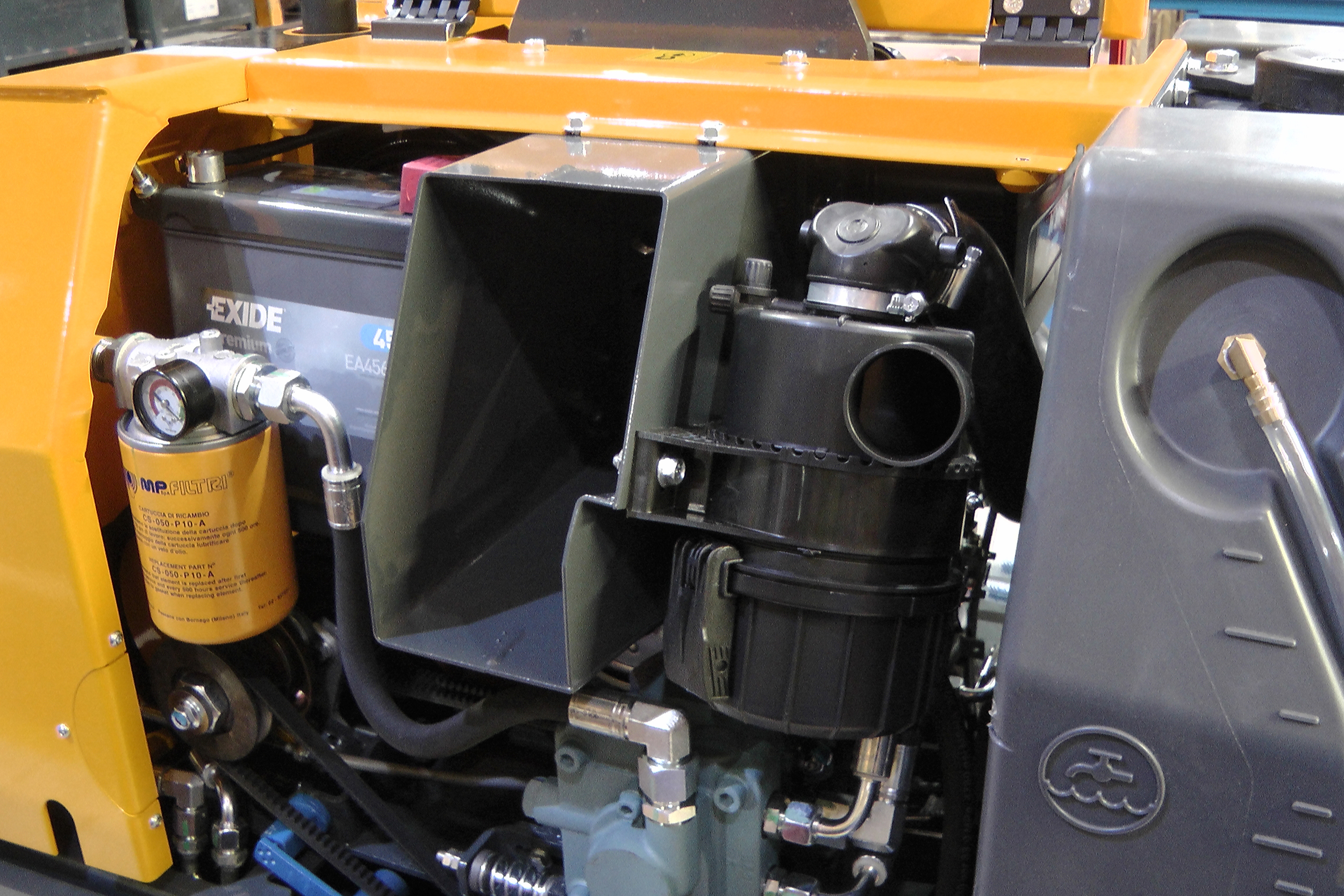

- Easy to service - Remote Oil Drain.
Remote Oil Fill.
Air Cleaner Access.
Easy acces to key service points.
- Drain on Water Tank to prevent frost damage.
- Centrally located Lifting Eye and 4 x Strapping / Lifting Points.
- Parking Brake.
- Key Switch protection.
- Ignition Warning System.
- Customer colour options available.
- Optional Hourmeter available.
| Ref |
Model |
Engine
Power
(hp/kW) |
Frequency
(vpm) |
Forward Travel
Speed
(km/hr) |
Reverse Travel
Speed
(km/hr) |
Force
(kN) |
Water Tank Capacity
(Ltr) |
Oil Tank Capacity
(Ltr) |
Weight
(kg) |
|
TDX650GRY4
|
TDX 650 Twin Drum Roller |
Yanmar L100N Diesel
10 / 7.4 |
3300 |
> 3.9 |
> 2.1 |
20 |
65 |
18 |
775 |

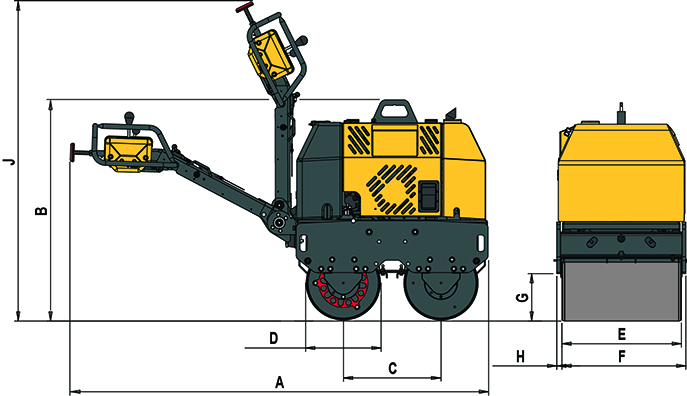

| STATIC DIMENSIONS |
 |
| |
|
| |
|
TDX 650 |
| A - Overall Length |
(mm) |
2272 |
| B - Overall Height |
(mm) |
1093 |
| C - Wheel Base |
(mm) |
530 |
| D - Drum Diameter |
(mm) |
402 |
| E - Drum Width |
(mm) |
650 |
| F - Overall Width |
(mm) |
702 |
| G - Curb Clearance |
(mm) |
258 |
| H - Lateral Overhang |
(mm) |
28 |
| J - Height at Storage |
(mm) |
1730 |
