RTX Rammers
RTX Rammers
A comprehensive range of 4 stroke Honda petrol & Yanmar diesel engine Trench Rammers. The RTX Rammers feature excellent balance for easy control and high level compaction.
RTX Rammers image 0 RTX Rammers
Advantages
  • Xtra power for use on cohesive materials & gradients.
  • Xtra strong, durable design.
  • Low Hand-Arm Vibration.
  • Triple-Filtration Air Cleaner System (Duel-Filtration on Diesel model).
  • Duel-Filtration Fuel System.
  • Swing-Out engine protection for easy access to maintenance points (60, 68 & 70 models only)
  • Carburettor Primer Bulb for easy start in any conditions (Petrol engine only)
  • Low-maintenance leg with Oil Level Sight Glass.
  • Lower Grab Handle and Front Roller for easy transportation. Both easily replaceable.
  • Wooden & Plastic Foot options, with various widths available.
  • Service Kits available.
  • Wheel Kit & Transport Trolley options available.
  • Hourmeter option available.
  • Spark Arrester option available (80D only)
  • Customer colour options (60, 68 & 70 models only).
Model Part Number Engine Power
(Hp) - (kW)		 Blows per
Minute		 Carburettor
Type		 Impact Force
(kN)

Amplitude
(mm)

 Frequency
(Hz)		 Weight
(kg)
RTX 50R
Honda GX100 Petrol
230mm Foot		 RTX50H2230 3.6 - 2.7 450-660 Diaphragm 12.5 52 11 57.7
RTX 60R
Honda GX100 Petrol
165mm Foot		 RTX60H2165S 3.6 - 2.7 450-660 Diaphragm 13.6 52 11 60
RTX 60R
Honda GX100 Petrol
230mm Foot		 RTX60H2230S 3.6 - 2.7 450-660 Diaphragm 13.6 52 11 60
RTX 60R
Honda GX100 Petrol
280mm Foot		 RTX60H2280S 3.6 - 2.7 450-660 Diaphragm 13.6 52 11 60
RTX 68R
Honda GXR120 Petrol
280mm Foot		 RTX68H2280S 3.6 - 2.7 450-660 Diaphragm 16 52 11 70
RTX 70R
Honda GXR120 Petrol
280mm Wooden Foot		 RTX70H2280S 3.6 - 2.7 450-700 Diaphragm 18 52 11 72
RTX 80D
Yanmar L48 Diesel
280mm Foot		 RTX80Y280 4.7 - 3.5 450-600 Injection 20.5 52 10 86

* All Foot Widths are available for each RTX Rammer model.



Description Part Number RTX 50 RTX 60 RTX 66 RTX 68 RTX 74 RTX 80D Buy Now
**Wooden Foot Assembly, W = 165mm 980/02600 Yes Yes Yes Yes Yes Yes Click Here To Buy Now
**Wooden Foot Assembly, W = 230mm 980/02700 Yes Yes Yes Yes Yes Yes Click Here To Buy NowClick Here To Buy NowClick Here To Buy NowClick Here To Buy NowClick Here To Buy Now
**Wooden Foot Assembly, W = 280mm 980/02800 Yes Yes Yes Yes Yes Yes Click Here To Buy Now
**Plastic Foot Assembly, W = 165mm 980/03300 Yes Yes Yes Yes Yes Yes Click Here To Buy Now
**Plastic Foot Assembly, W = 230mm 980/02400 Yes Yes Yes Yes Yes Yes Click Here To Buy Now
**Plastic Foot Assembly, W = 280mm 980/02500 Yes Yes Yes Yes Yes Yes Click Here To Buy Now
Extension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 80mm, H = 260mm OPRA/08/DIO Yes Yes Yes Yes Yes Yes Click here To Buy Now
Extension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 80mm, H = 260mmExtension Foot, W = 80mm, H = 160mm OPRA/08/DIOOPRA/09/DIO Yes Yes Yes Yes Yes Yes Click Here To Buy Now
Extension Foot, W = 100mm, H = 325mm OPRA/05/DIO Yes Yes Yes Yes Yes Yes Click Here To Buy Now
Extension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 160mm OPRA/13/DIO Yes Yes Yes Yes Yes Yes Click Here To Buy Now
Extension Foot, W = 165mm OPRA/06/DIO Yes Yes Yes Yes Yes Yes Click Here To Buy Now
Wheel Kit OPRA/04/DIO Yes Yes Yes Yes Yes Yes Click Here To Buy Now
Hour Meter OPRA/03/DIO Yes Yes Yes Yes Yes Yes Click Here To Buy Now
Transport Trolley OPRA/10/DIO Yes Yes Yes Yes Yes Yes Click Here To Buy Now

**Comes complete with fasteners for attaching to the Foot to the Rammer Leg.

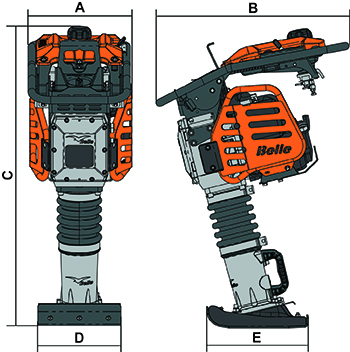

STATIC DIMENSIONS


    RTX 50 RTX 60C RTX 60 RTX 68 RTX 70 RTX 80D
A - Width (mm) 345 345 345 345 345 425
B - Length (mm) 670 670 705 705 714 700
C - Height (mm) 975 975 975 1040 1040 1081
D - Shoe Width* (mm) 230 165 165 280 280 280
E - Shoe Length* (mm) 335 335 335 335 335 335
Product Brochure
 RTX Rammers product brochure - en

Description Part Number RTX 50 RTX 60 RTX 66 RTX 68 RTX 74 RTX 80D Buy Now
**Wooden Foot Assembly, W = 165mm 980/02600 Yes Yes Yes Yes Yes Yes Click Here To Buy Now
**Wooden Foot Assembly, W = 230mm 980/02700 Yes Yes Yes Yes Yes Yes Click Here To Buy NowClick Here To Buy NowClick Here To Buy NowClick Here To Buy NowClick Here To Buy Now
**Wooden Foot Assembly, W = 280mm 980/02800 Yes Yes Yes Yes Yes Yes Click Here To Buy Now
**Plastic Foot Assembly, W = 165mm 980/03300 Yes Yes Yes Yes Yes Yes Click Here To Buy Now
**Plastic Foot Assembly, W = 230mm 980/02400 Yes Yes Yes Yes Yes Yes Click Here To Buy Now
**Plastic Foot Assembly, W = 280mm 980/02500 Yes Yes Yes Yes Yes Yes Click Here To Buy Now
Extension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 80mm, H = 260mm OPRA/08/DIO Yes Yes Yes Yes Yes Yes Click here To Buy Now
Extension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 80mm, H = 260mmExtension Foot, W = 80mm, H = 160mm OPRA/08/DIOOPRA/09/DIO Yes Yes Yes Yes Yes Yes Click Here To Buy Now
Extension Foot, W = 100mm, H = 325mm OPRA/05/DIO Yes Yes Yes Yes Yes Yes Click Here To Buy Now
Extension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 160mm OPRA/13/DIO Yes Yes Yes Yes Yes Yes Click Here To Buy Now
Extension Foot, W = 165mm OPRA/06/DIO Yes Yes Yes Yes Yes Yes Click Here To Buy Now
Wheel Kit OPRA/04/DIO Yes Yes Yes Yes Yes Yes Click Here To Buy Now
Hour Meter OPRA/03/DIO Yes Yes Yes Yes Yes Yes Click Here To Buy Now
Transport Trolley OPRA/10/DIO Yes Yes Yes Yes Yes Yes Click Here To Buy Now

**Comes complete with fasteners for attaching to the Foot to the Rammer Leg.
