AT350 Road Tow Mixer
AT350 Road Tow Mixer

ALTRAD Saint Denis AT350 Road Tow Mixer

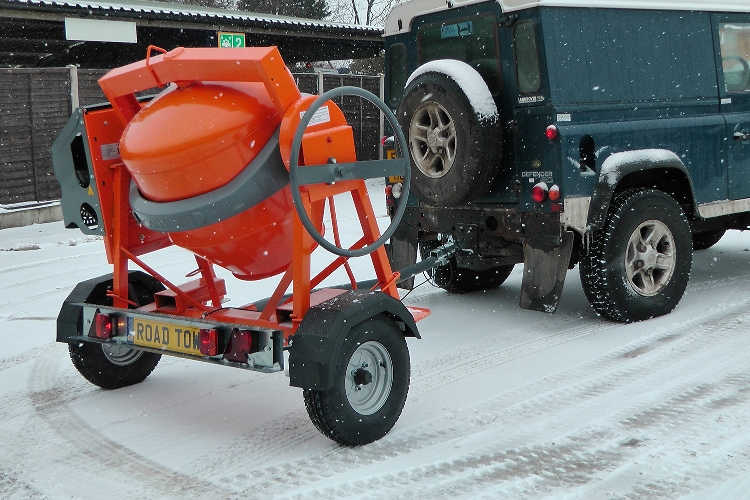

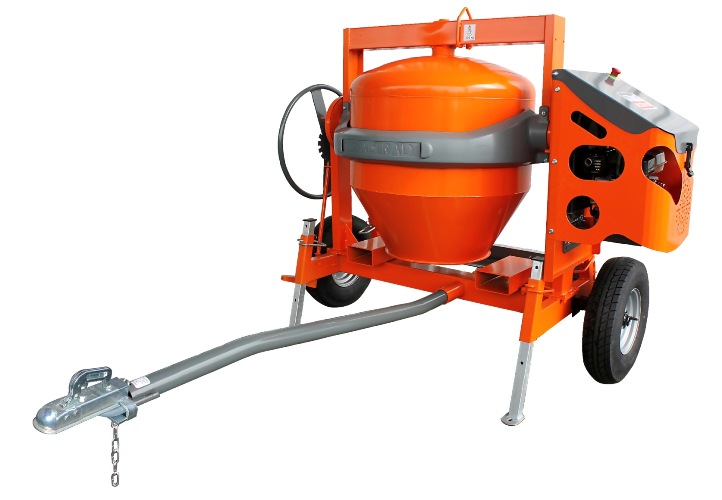

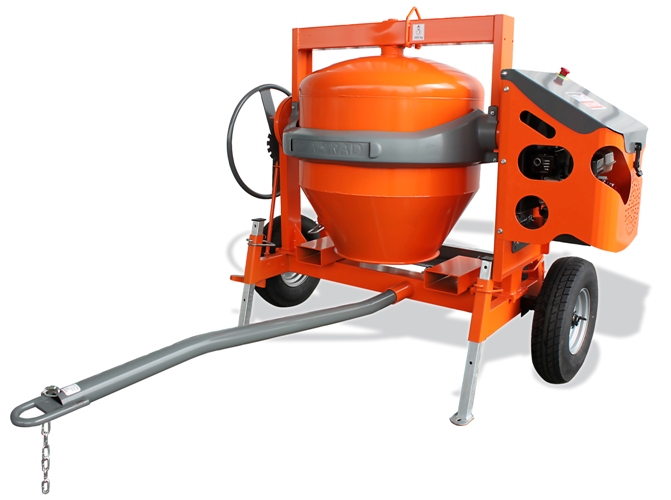

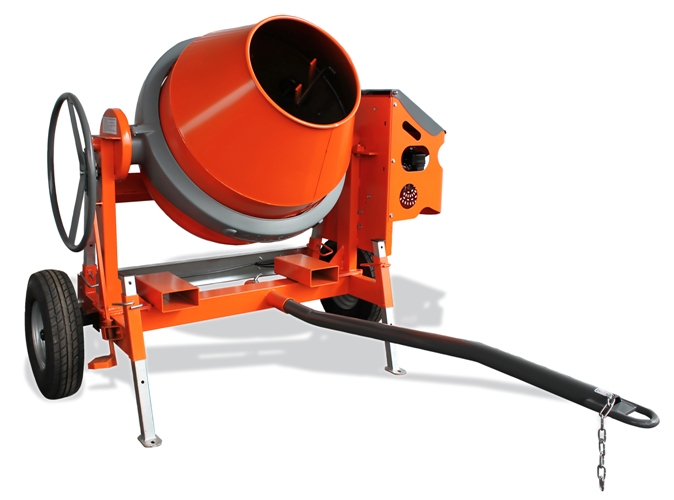

Designed for easy site to site portability and with a quick and easy set up the AT350 Road Tow Mixer is ideal for mixing larger batches of concrete and mortar.
AT350 Road Tow Mixer image 0 AT350 Road Tow Mixer
Advantages
  • Strong, durable, easy-to-clean chassis designed for demanding on site applications.
  • Quick and effortless to transfer from road tow to mix mode.
  • Large 280 litre drum.
  • Hatz 1LB20 Diesel engine.
  • Supplied complete with mudguards,tow hitch and full integrated lighting board.
  • Engine canopy with integrated ventilation for improved engine cooling.

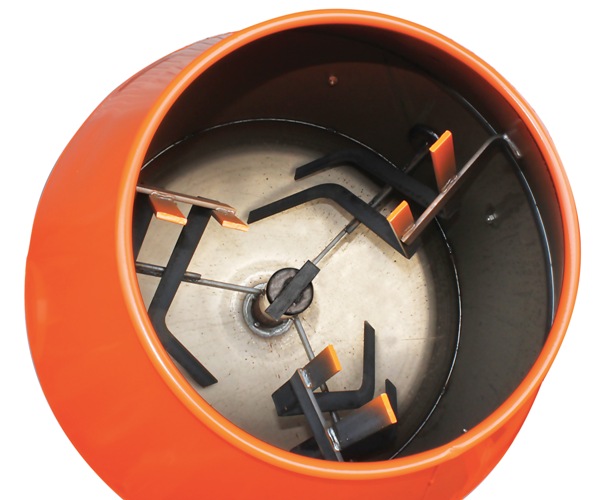

  • 3 large mixing paddles for enhanced mixing performance.
  • Large handwheel for easy tipping with foot pedal locking system.
  • Adjustable leg height.
  • High quality wheel suspension able to cope with speeds up to 55mph.
  • Lifting Eye and Fork Lift sockets for easy site transportation.
  • Cast-Iron ring gear and pinion with protection guard for safe operator usage.

A rugged mixer designed for site to site portability with a quick and easy set-up and with the latest approved towing system and tail lights.
The “new” AT350 Road Tow Mixer is ideal for mixing larger batches of concrete and mortar

.With a strong; durable and compact fast tow chassis for demanding on-site conditions this new mixer is destined to be a firm favourite with contractors and hire companies alike as it takes up minimal storage space and is quick and effortless to transfer from road tow to mixer mode.



Ref Model Power
(hp / kW)
Drum
Volume
(litre)
Mixing
Maximum
(litre)
Paddle
Type
Dimensions
(mm)
Pneumatic
Tyres
(mm)
Noise
Level
(dB(A))

Weight(kg)
            Mixing
W H L

UK35P1V09

UK 350 PRO HONDA GX160QX 5.5 / 4 340 280 Gated Paddles 1910 1630 950 500 105 323
UK35P1A10 UK 350 PRO DIESEL HATZ 1B20 4.8 - 3.5 340 280 Gated Paddles 1910 1630 950 500 105 337
UK35P1E01 UK 350 PRO ELECTRIC 220V 2 - 1.5 340 280 Gated Paddles 1910 1630 950 500 105 320
UK35P1E11 UK 350 PRO ELECTRIC 110v 2 - 1.5 340 280 Gated Paddles 1910 1630 950 500 105 320
UK35P1E12 UK 350 PRO ELECTRIC TRI3ph 2 - 1.5 340 280 Gated Paddles 1910 1630 950 500 105 320

*The mixing capacity and quantity of cement bags are established from a concrete dosed at 350 kg/m3 firm consistency.
