RB800H
RB800H

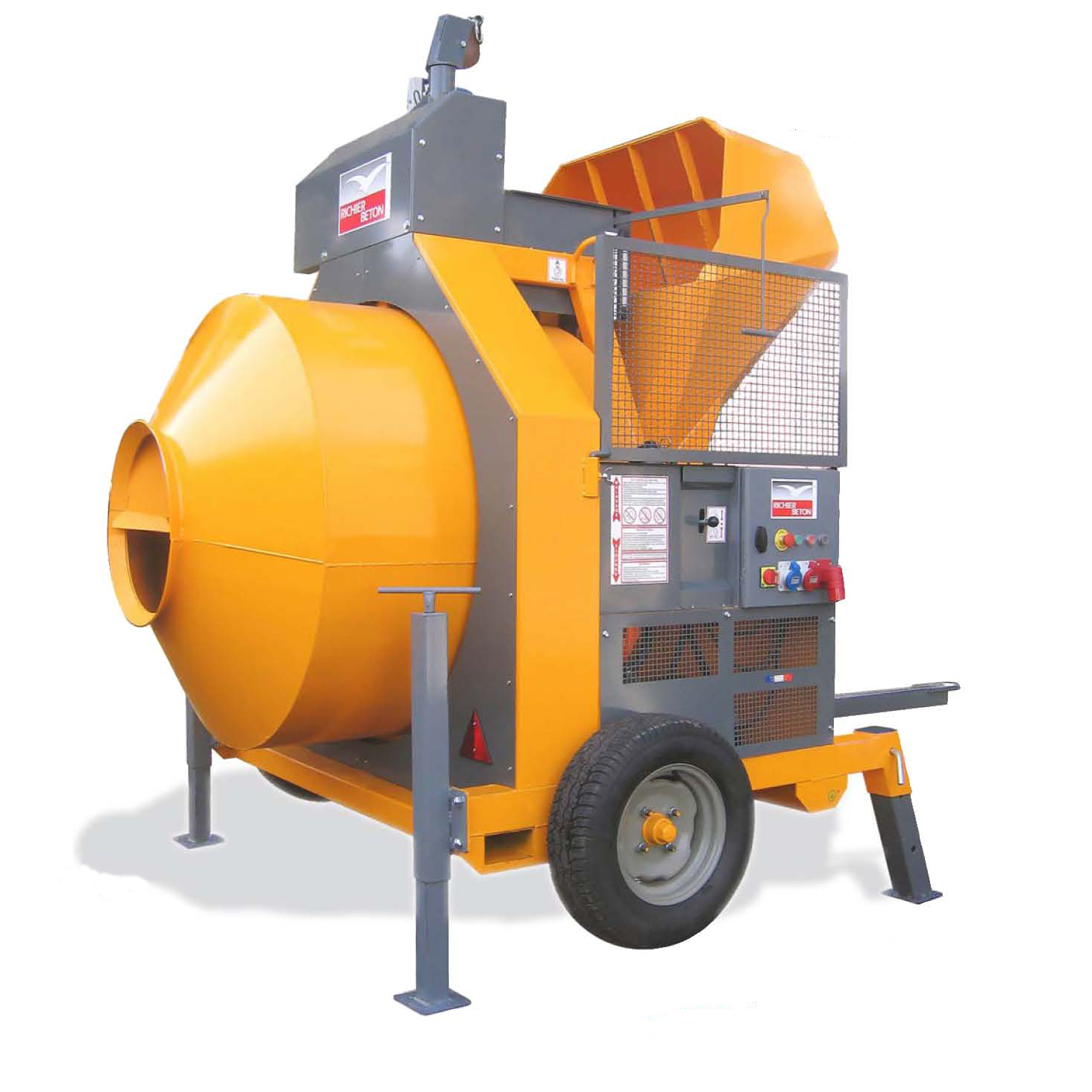

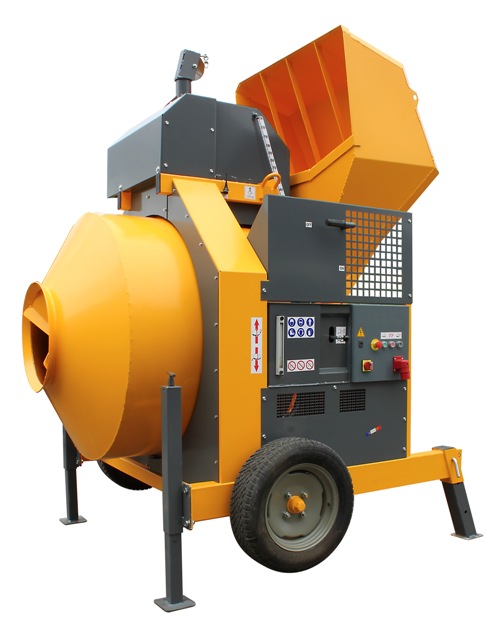

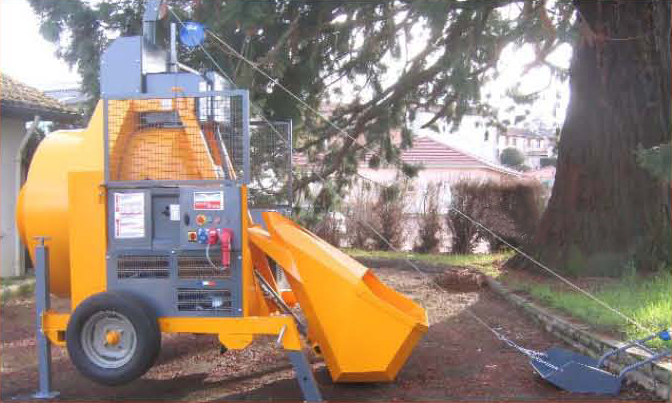

800 Litre Skip-Fed Mixer with Horizontal Drum and Hydraulic Skip.

Available in Electric or Diesel with Standard scraper powered either by Remote Control or Winch and Clutch.
RB800H image 0 RB800H
Advantages

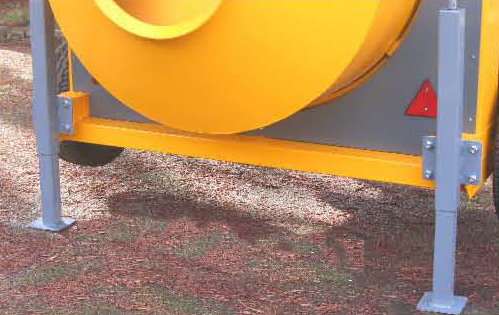

  • Adjustable rear feet with handle.

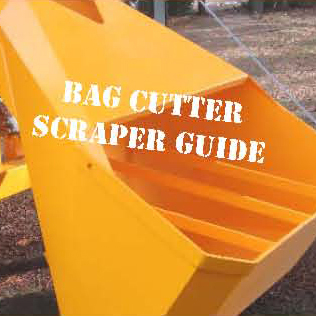

  • Skip equipped with bag cutter and scraper guide.
  • Double-effect ram with valve enabling all position skip locking.

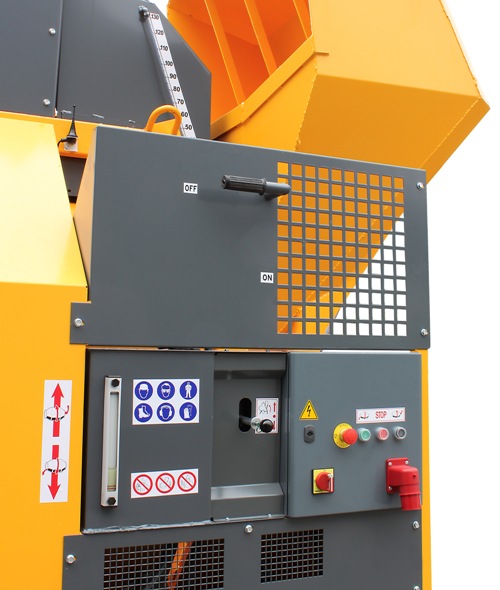

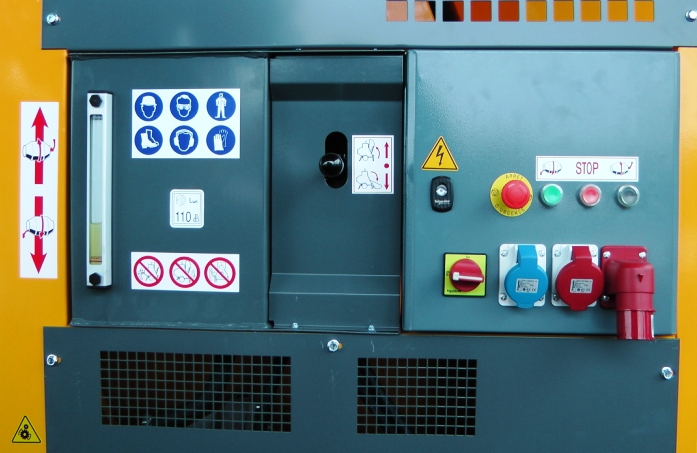

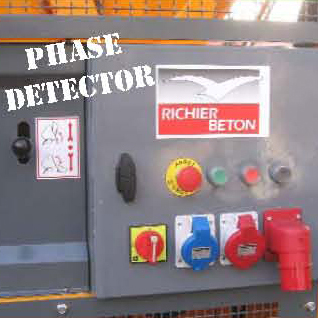

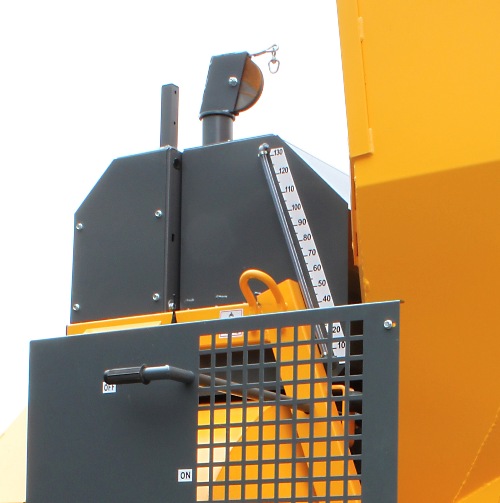

  • Control panel equipped with phase detector, cuts out in case of incorrect wiring.
  • Protective grid ensuring optimal protection.

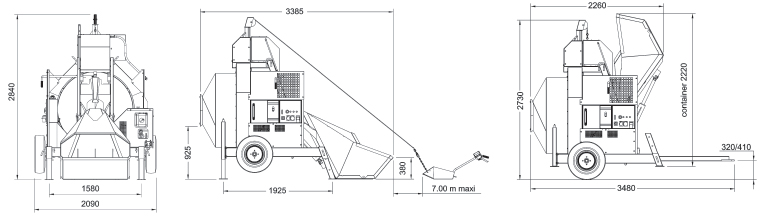

Ref Model Power Mixing
Capacity
(Ltr)		 Final
Volume -
Fluid
(Ltr)		 Water
Tank
Capacity
(Ltr)		 Towing
Speed
(m/s)		 Width
(mm)		 Height
(mm)		 Length
(mm)		 Steel
Cable
Length
(mm)

Weight
with
Scraper
(kg)
RB800H Electric 380v / 50Hz 7.5 / 5.5
(Hp / kW)		 800 550 60 0.5 2090 2840 2260 9500 1200
RB800H Hatz  Diesel Generator 10 kVA 800 550 60 0.5 2090 2840 2260 9500 1480

* To obtain final volume, pour two skips of agregate into the drum. The final volume depends on the sand percentage, the agregate size and porosity, and the fluidity of the concrete.

None

Currently no options for this product

Click here for spare parts.
