PCEL 320X
PCEL 320X

Extra Lightweight Plate Compactor

Altrad Belle's Lightweight, Single Direction Vibration Plate compactor is specially designed for confined areas of granular soil in narrow trenches, interlocking blocks, footpath construction and maintenance, trenches and pipelines, sportsgrounds, landscaping and groundwork engineering.
PCEL 320X image 0 PCEL 320X
Advantages
  • Ultra compact design
  • Removable operating handle for easy storage, handle folds very low as diagram shows
  • Front and rear lift handles
  • 8mm thick plate
Ref Model Engine
Power
(hp/kW)		 Plate Size
WxL
(mm)		 Static
Pressure
(kg/m2)		 Centrifugal
Force
(kN)		 Travel
Speed
(m/min)		 Vibration
(m/sec2)		 Weight
(kg)
ELX3201 Orange PCEL 320X petrol
Honda GXR120		 3.1 / 2.3 320 x 364 425 11 23 4.43 49

ELX3203 Yellow

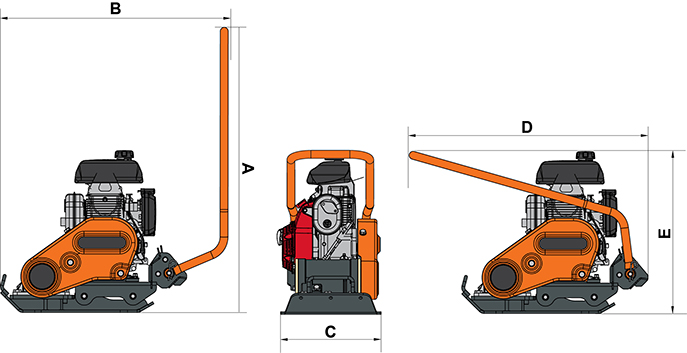

STATIC DIMENSIONS

    MPC 300
A - Height - Operation (mm) 980
B - Length - Operation (mm) 720
C - Width (mm) 320
D - Length - Storage (mm) 830
E - Height - Storage (mm) 545
Operator Manuals
 PCEL 320X operator manual - en
Product Brochure
 PCEL 320X product brochure - en

Currently no videos for this product

Ref Model Weight
(kg)		 Buy Now
OPP/63/DIO Block Paving Pad PCEL 320X 1.5



Click here for spare parts.
