Premier XT
Premier XT

High performance heavy duty mobile site mixer

An advanced range of mixers that adds even more durability to the proven Premier mixers. To match site requirements four drum sizes are available to give different batch mixing capacities. All sizes share the same advantages built in as standard.
Premier XT image 0 Premier XT
Advantages
  • Extra heavy-duty and robust chassis designed to withstand the worst site conditions.
  • Extra rigid and reinforced drum to prevent distortion.
  • Heavy duty wheels designed to operate in the toughest of conditions.
  • Stage 5 compliant Yanmar L48 Electric-Start Diesel engine.
  • Foot operated tip-lock and large tip wheel for added safety and control with large mixes.
  • Enhanced mixing performance with ‘Quick Mix’ replaceable bolt in paddles.
  • Easy-to-clean tubular chassis.
  • New wider profile wheels for extra stability.
  • Sealed, heavy-duty high specification gearbox reduced maintenance.
  • Lockable stay cool engine compartment for security and lid down operation.
  • Extra short wheel base on 100XT and 150XT to fit on compact vehicle tail lifts.
Model Part
Number		 Engine
Power
(Hp) - (kW)		 Drum
Volume
(ltr)		 Mixing Output/
Mixing Volume
(ltr)		 Drum
Speed
(rpm)		 Paddle
Type		 Noise
Level
(dB(A))		 Weight
(kg)
Premier 100XT
100XT Yanmar
Diesel Electric Start		 PM20V 3.4 - 2.5 250 110 19 Gated Paddle
Design		 99 335
100XT 110v Electric PM08 2 - 1.5 87 305.5
100XT 230v
1ph Electric		 PM06 303.5
Premier 150XT
150XT Yanmar
Diesel Electric Start		 PM38V 3.4 - 2.5 300 160 19 Gated Paddle
Design		 99 344
150XT 110v Electric PM28 2 - 1.5 87 314.5
150XT 230v
1ph Electric		 PM45 312.5
Premier 175XT
175XT Yanmar
Diesel Electric Start		 PM39V 3.4 - 2.5 350 180 19 Gated Paddle
Design		 99 350
175XT 110v Electric PM31 2 - 1.5 87 322.5
150XT 230v
1ph Electric		 PM46 320.5
Premier 200XT
200XT Yanmar
Diesel Electric Start		 PM40V 3.4 - 2.5 400 220 19 Gated Paddle
Design		 99 353.5
200XT 110v Electric PM42 2 - 1.5 87 325
200XT 230v
1ph Electric		 PM47 323

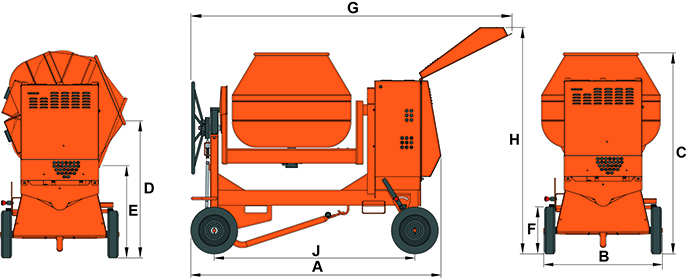

STATIC DIMENSIONS


    Premier 100XT Premier 150XT Premier 175XT Premier 200XT
A - Overall Length (mm) 1765 1765 1890 1890
B - Overal Width (mm) 900 900 900 900
C - Overall Height (mm) 1475 1560 1520 1590
D - Loading Height (mm) 1025 1065 1000 1050
E - Discharge Height (mm) 710 656 650 615
F - Diameter of Wheels (mm) 350 350 350 350
G - Overal Length (Door Open) (mm) 2085 2085 2390 2390
H - Overall Height (Door Open) (mm) 1950 1950 1950 1950
J - Wheel Base (mm) 1295 1295 1520 1520
Operator Manuals
 Premier XT operator manual - en

Currently no videos for this product

Currently no options for this product

Click here for spare parts.
