Home > Compacting > Forward Plates > PCX 20/45 & 20/50 >

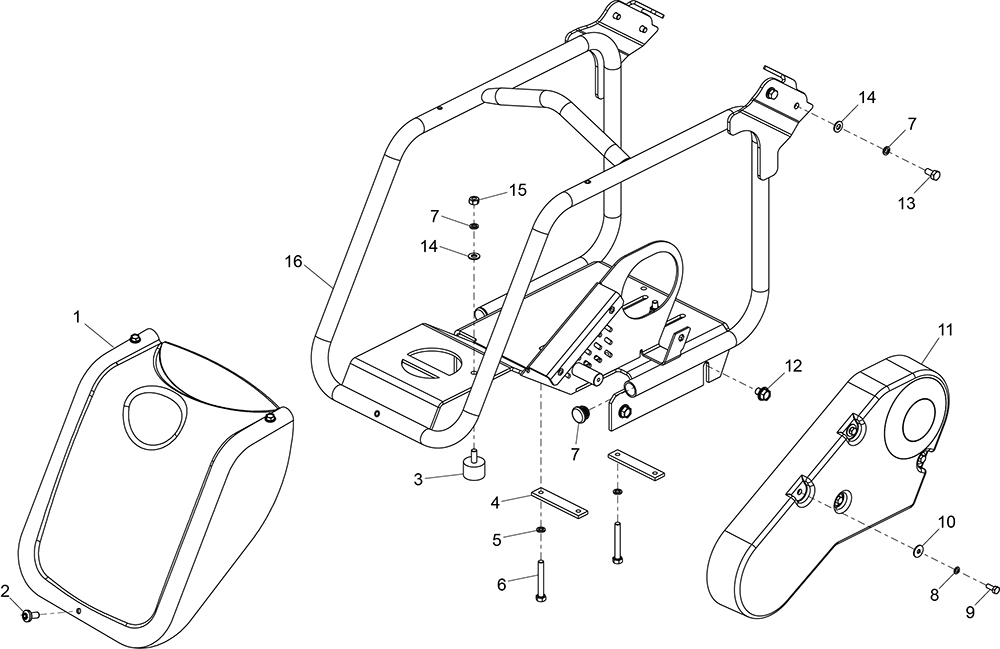

Bedplate Assembly (Honda)

IDStockCode  DescriptionPriceSuggested Qty
1151.0.134151.0.134 - Front Cover Front Cover
Orange		POA1Contact Us
1151.0.261151.0.261 - Front Cover Front Cover
Blue		POA1Contact Us
1151.0.177 Front Cover
Green		POA1Contact Us
1151/99904 Front Cov PCX (hon-rob) T-p
Green		POA1Contact Us
1151/99903 Front Cover
Red		POA1Contact Us
1151.0.179151.0.179 - Front Cover Front Cover
Yellow		POA1Contact Us
1151/99951 Front Cover
White		POA1Contact Us
27/8097 Screw
M8 x 16		POA3Contact Us
30052500525 - Bonded Feet Bonded FeetPOA1Contact Us
4151.0.161151.0.161 - Engine Clamp Bar Front-honda Engine Clamp Bar Front-hondaPOA2Contact Us
54/80034/8003 - Washer Washer
M8		POA9Contact Us
67/80527/8052 - Screw ScrewPOA1Contact Us
721.0.25921.0.259 - Insert 1 Insert 1" PlasticPOA2Contact Us
84/60054/6005 - Washer Washer
M6		POA4Contact Us
902.0.012 Setscrew M6x16
M6 x 16
Now Use 9/6001		POA4Contact Us
1005.3.06605.3.066 - Washer Washer
M6		POA4Contact Us
11151/99992Y Belt Guard 19kn (yellow)
Yellow		POA1Contact Us
11151/99992G Belt Guard 19kn (green)
Green		POA1Contact Us
127/100257/10025 - Screw Screw
M10 x 12		POA4Contact Us
137/80087/8008 - Screw Screw
M8 x 16		POA5Contact Us
144/80064/8006 - Washer Washer
M8
M8		POA5Contact Us
158/80018/8001 - Nut NutPOA1Contact Us
16151/00400 Bedplate PCX Hon/rob- SparesPOA1Contact Us

Please note all prices exclude VAT
