Home > Breaking > Hydraulic Breakers > PAN Breakers > 20-23 PAN >

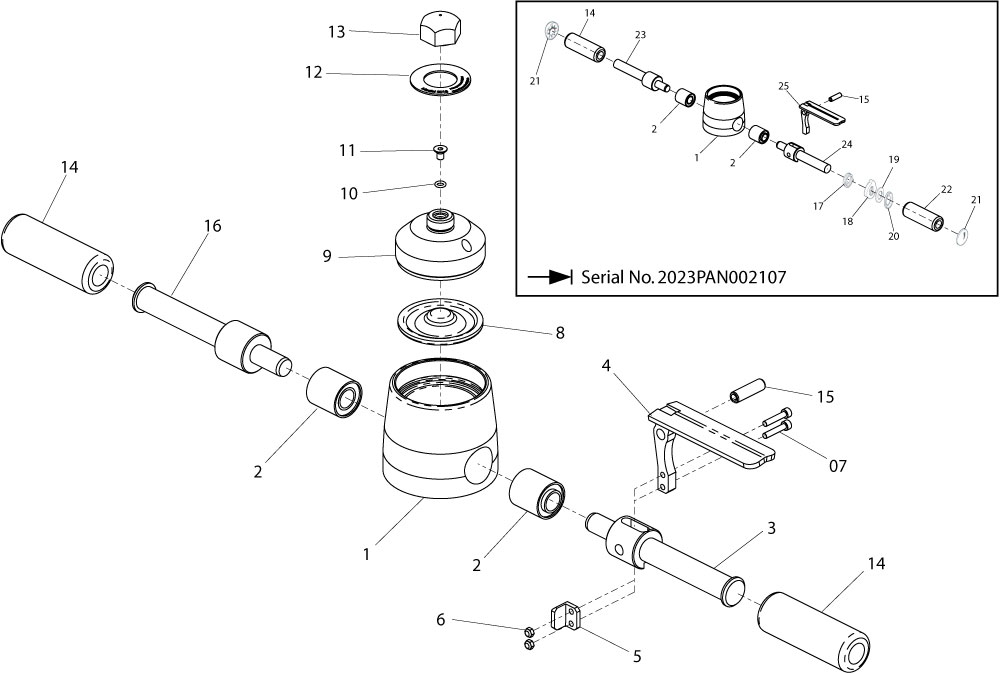

Top Cover Assembly

IDStockCode  DescriptionPriceSuggested Qty
101596 Accumulator Head 2018 Mk2POA1Contact Us
20111301113 - Flexible Handle Bush Flexible Handle BushPOA2Contact Us
300357 Handle (r.h.)POA1Contact Us
401929 Trigger (t/lock)POA1Contact Us
502320 Block - Trigger PadPOA1Contact Us
68/50038/5003 - Nut NutPOA2Contact Us
77/50217/5021 - Screw ScrewPOA2Contact Us
801106 Diaphragm CompletePOA1Contact Us
901112 Accumulator CapPOA1Contact Us
1010-204-006710-204-0067 - O Ring 204-006-4470 O Ring 204-006-4470POA1Contact Us
1110-370-061010-370-0610 - Filler Screw Socket Head Filler Screw Socket HeadPOA1Contact Us
120233902339 - Identity Plate 20 L/140 Bar Identity Plate 20 L/140 BarPOA1Contact Us
130050300503 - Nylon Charging Cap Nylon Charging CapPOA1Contact Us
140068100681 - Hand Grip Hand GripPOA2Contact Us
1510-500-103510-500-1035 - Roll Pin M10 X 35 Roll Pin M10 X 35POA1Contact Us
1600356 Handle (l.h.)POA1Contact Us
170187301873 - Torsion Spring Torsion SpringPOA1Contact Us
180186901869 - Trigger Lock Lever Trigger Lock LeverPOA1Contact Us
190193101931 - Bearing Washer Bearing WasherPOA1Contact Us
2010-404-200010-404-2000 - Starlock Push-on Fastener Starlock Push-on FastenerPOA1Contact Us
210001100011 - Star Clip - Capped Star Clip - CappedPOA2Contact Us
220193001930 - Rh Handle Grip (t/lock) Rh Handle Grip (t/lock)POA1Contact Us
2301872 Lh Handle (trigger Lock)POA1Contact Us
2401871 Rh Handle (trigger Lock)POA1Contact Us
250102801028 - Trigger 2018 Trigger 2018POA1Contact Us

Please note all prices exclude VAT
