Home > Mixing > Baromix > Baromix Minor >

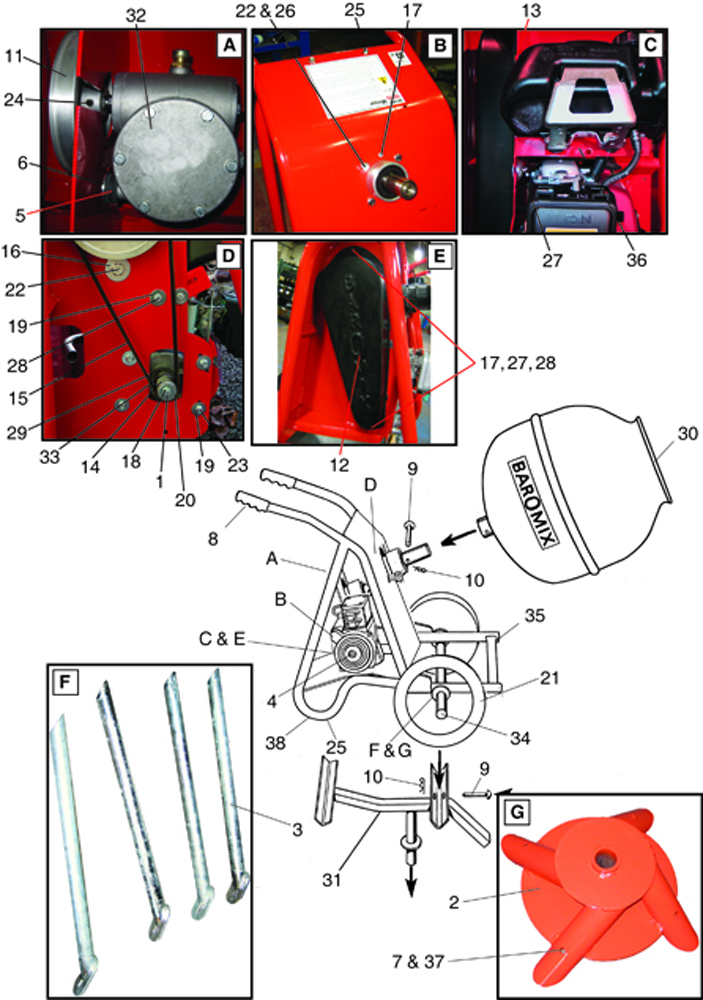

Main Assembly (Honda - Current Production)
1x Magnify

IDStockCode  DescriptionPriceSuggested Qty
102.3.00502.3.005 - Setscrew 1/4 Setscrew 1/4" X 1" Unf BzpPOA1Contact Us
2176101 Spider Stand TopPOA1Contact Us

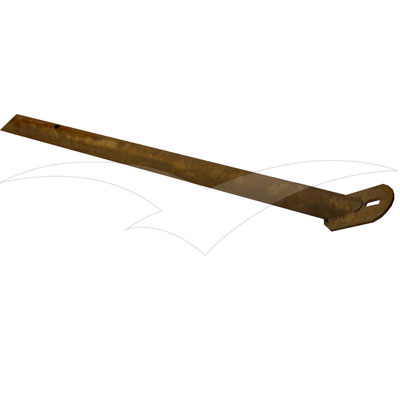

3176110Z176110Z - Swivel Stand Legs Swivel Stand LegsPOA4Contact Us
420/0037 Engine Honda GXh50u Qxb4POA1Contact Us
520061 M10 X 30 X 4 Rubber Washer
M10
POA2Contact Us
62007120071 - Washer Washer
M10
POA2Contact Us
78/80128/8012 - Nut NutPOA4Contact Us
830004 Rubber Handle GripPOA2Contact Us

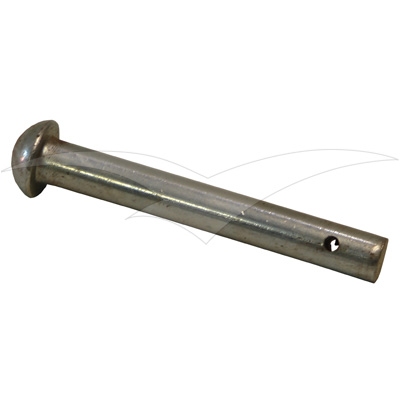

93002730027 - Drum/swivel Stand Securing Pin Drum/swivel Stand Securing PinPOA2Contact Us

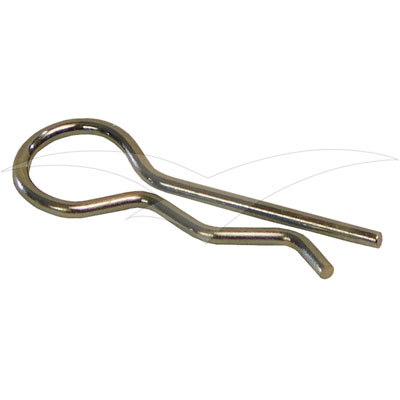

103002930029 - Spring R Spring R" Clip For Pin"POA2Contact Us

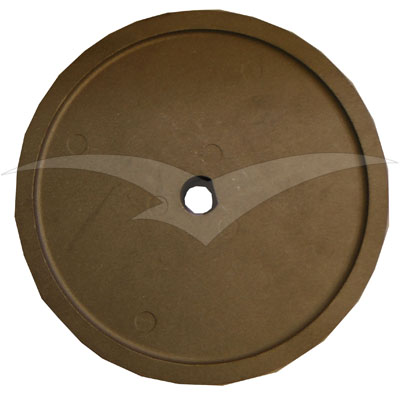

113006330063 - 6 6" Top Pulley For Honda/robinPOA1Contact Us
1230300 Min Belt Guard Mar 01 TeardropPOA1Contact Us
1330301 Minor Rubber Finger Guard MarPOA1Contact Us

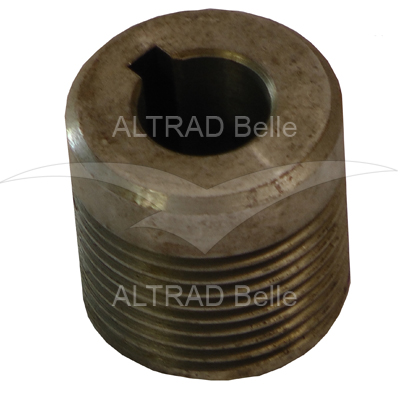

143202232022 - Honda Engine Bottom Pulley Honda Engine Bottom PulleyPOA1Contact Us

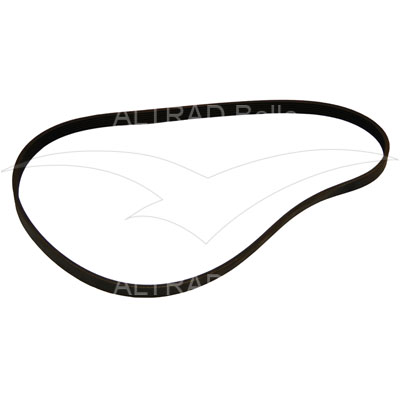

153202432024 - Micro V Belt 6 Ribs 340j/pj864 Micro V Belt 6 Ribs 340j/pj864POA1Contact Us
164/10094/1009 - Washer WasherPOA2Contact Us
174/60014/6001 - Washer Washer
M6
POA4Contact Us
184/60054/6005 - Washer Washer
M6
POA1Contact Us
194/60094/6009 - Washer Washer
M6
POA8Contact Us
204/60154/6015 - Washer WasherPOA1Contact Us
2160/028660/0286 - Wheel Dia 300 (25.5/60 Hub) Wheel Dia 300 (25.5/60 Hub)POA2Contact Us
227/100107/10010 - Screw ScrewPOA5Contact Us
237/60347/6034 - Screw ScrewPOA4Contact Us
247/80067/8006 - Screw ScrewPOA1Contact Us
257/80127/8012 - Screw ScrewPOA6Contact Us
268/100068/10006 - Nut NutPOA4Contact Us
278/60078/6007 - Nut NutPOA4Contact Us
289/60019/6001 - Bolt BoltPOA5Contact Us
29900/99902900/99902 - Engine Pulley Key Engine Pulley KeyPOA1Contact Us

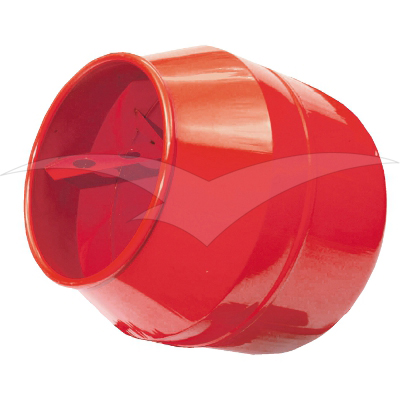

30A3000A3000 - Minor Drum Painted A/c Minor Drum Painted A/cPOA1Contact Us
31A3005 Swivel Stand TopPOA1Contact Us

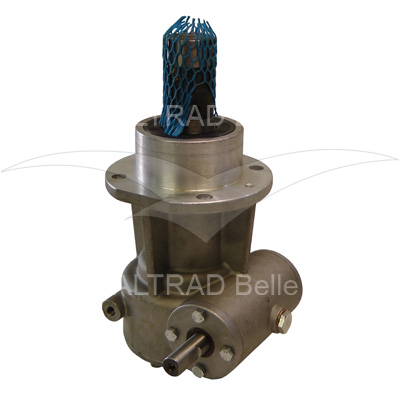

32A3007A3007 - Minor Gearbox Assembly From Minor Gearbox Assembly FromPOA1Contact Us
33B0023 Spacer Honda MinorPOA2Contact Us
34CMS16CMS16 - Axle Cap Axle CapPOA2Contact Us
35P0016 Painted Honda ChassisPOA1Contact Us

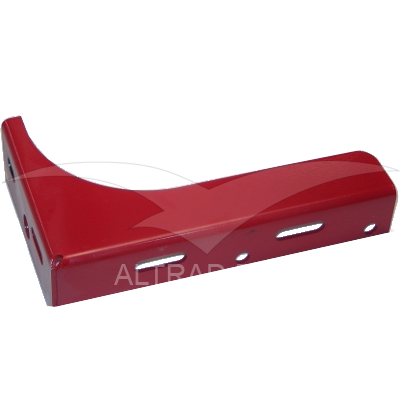

36176002176002 - Minor Tank Bracket Minor Tank BracketPOA1Contact Us
3720088 M8 X 55 Hex Bolt ZincPOA4Contact Us
38562811 Minor LegsPOA1Contact Us
Update All

Please note all prices exclude VAT
