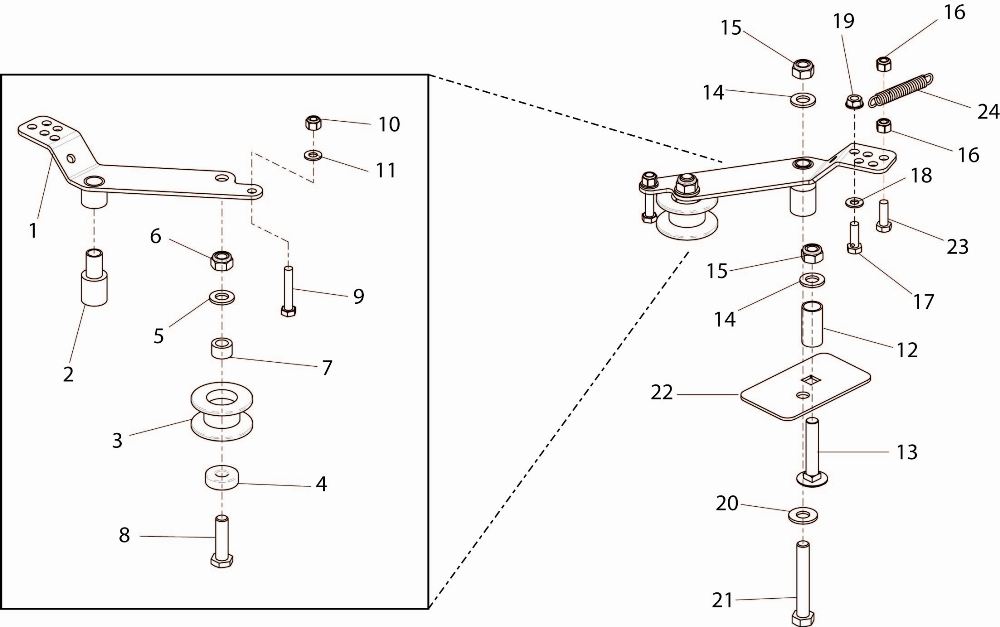

Clutch Assembly (Up To Serial No. 141778)

IDStockCode  DescriptionPriceSuggested Qty
1961/01300961/01300 - Clutch Arm Wa Clutch Arm WaPOA1Contact Us
2961/99919 Clutch Lever PivotPOA1Contact Us
321/025021/0250 - Belt Friction Wheel Pulley Belt Friction Wheel PulleyPOA1Contact Us
453/006053/0060 - 32 Od X 12 Idwide Ball Bearing 32 Od X 12 Idwide Ball BearingPOA1Contact Us
54/12044/1204 - Washer Washer
M12		POA2Contact Us
68/120068/12006 - Nut NutPOA1Contact Us
7961/99917961/99917 - Clutch Arm Pulley Spacer Clutch Arm Pulley SpacerPOA1Contact Us
89/120219/12021 - Bolt BoltPOA1Contact Us
99/80179/8017 - Bolt BoltPOA1Contact Us
108/80088/8008 - Nut NutPOA1Contact Us
114/80064/8006 - Washer Washer
M8		POA1Contact Us
12961/99920 Belt Guide TubePOA1Contact Us

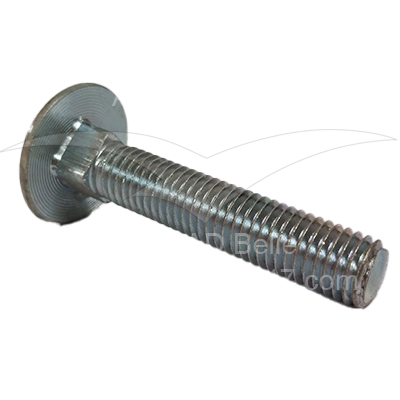

139/120269/12026 - Bolt BoltPOA1Contact Us
144/12044/1204 - Washer Washer
M12		POA4Contact Us
158/120068/12006 - Nut NutPOA3Contact Us
168/80088/8008 - Nut NutPOA11Contact Us
177/8070 ScrewPOA2Contact Us
184/80064/8006 - Washer Washer
M8		POA16Contact Us
198/8020 NutPOA8Contact Us
204/12014/1201 - Washer Washer
M12		POA1Contact Us
219/120079/12007 - Bolt BoltPOA1Contact Us
22961/99911 Clutch Reinforcement Plate`POA1Contact Us
237/80127/8012 - Screw ScrewPOA1Contact Us
24961/99925961/99925 - Tension Spring Tension SpringPOA2Contact Us

Please note all prices exclude VAT
