Home > Cutting > Floor Saws > Claymore Saw >

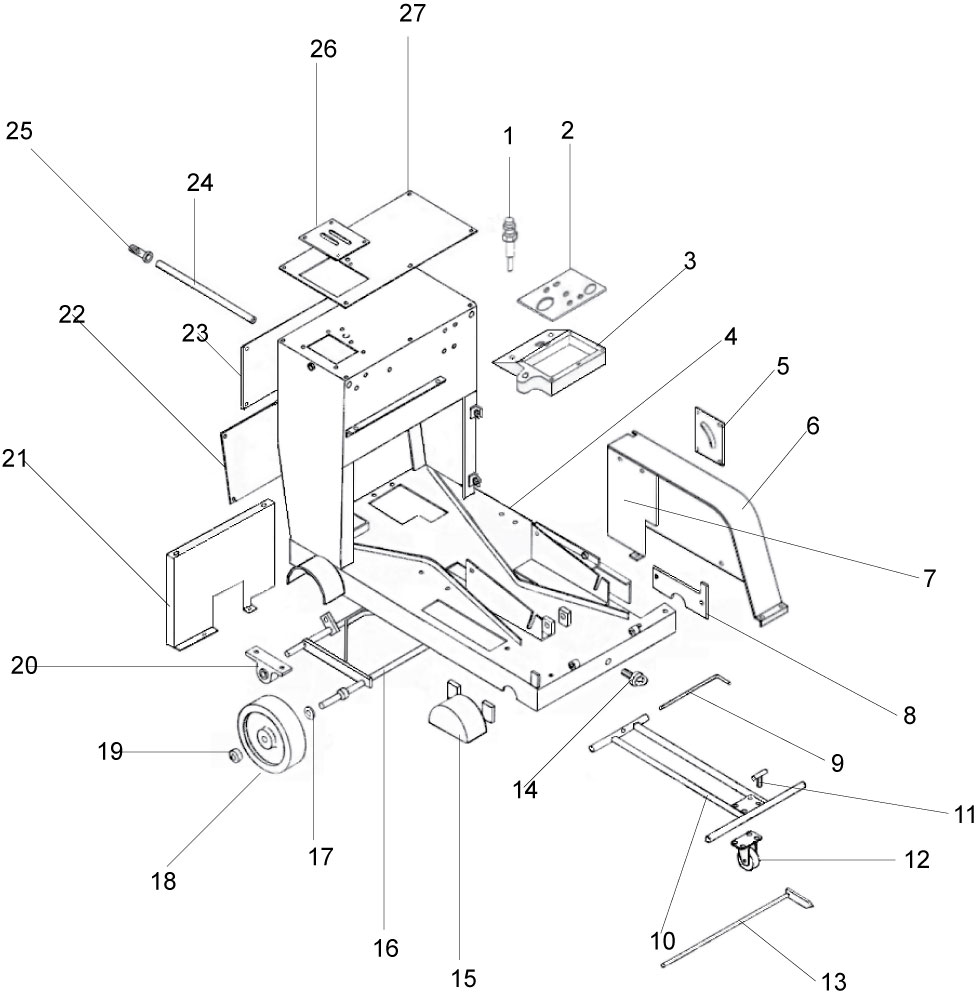

Main Assembly

IDStockCode  DescriptionPriceSuggested Qty
-71.3.015 Wiring Conduit Assy Fa1POA1Contact Us
-71.0.179 Lifting FramePOA1Contact Us
-02.0.050 Setscrew M12 X 35 Ht BzpPOA6Contact Us
-4/12014/1201 - Washer Washer
M12		POA6Contact Us
-4/12044/1204 - Washer Washer
M12		POA6Contact Us
-01.0.603 Philidas Nut M12POA6Contact Us
-19.1.24219.1.242 - Spanner - 38mm A/f Single O/e Spanner - 38mm A/f Single O/ePOA1Contact Us
171.3.024 Throttle Cable CompletePOA1Contact Us
219.0.262 Console CoverPOA1Contact Us
371.0.164 Console Electrics HatzPOA1Contact Us
471.3.005 Baseplate / Console AssemblyPOA1Contact Us
571.0.086 Water Pump Cover PlatePOA1Contact Us
671.0.110 Belt GuardPOA1Contact Us
771.0.093 Belt Guard BackplatePOA1Contact Us
871.0.114 Removable Side PlatePOA1Contact Us
971.0.030 Locking Handle - Pointer GuidePOA1Contact Us
1071.0.058 Pointer Guide FramePOA1Contact Us
1171.0.097 Lockating Handle - T BarPOA1Contact Us
1219.0.555 CastorPOA1Contact Us
1371.0.096 Pointer GuidePOA1Contact Us
1400.6.004 Eye Bolt Bs529 1" WhitworthPOA1Contact Us
1571.0.109 Flange Cover - Arbor ShaftPOA1Contact Us
1671.0.115 Subframe AssyPOA1Contact Us
1705.4.024 Washer 1" 1 7/8" X 8g BzpPOA2Contact Us
1819.0.529 10" Wheel
Subframe		POA2Contact Us
1921.0.055 Shaft Collar 1"
Shaft		POA2Contact Us
2012.0.014 Bearing Plummer Block Rhp Np1POA2Contact Us
2171.0.011 Front Cover - Engine Side
Engine Side		POA1Contact Us
2271.0.013 Lower Back CoverPOA1Contact Us
2371.0.056 Upper Back CoverPOA1Contact Us
2471.0.010 HandlePOA2Contact Us
2519.0.70819.0.708 - Hand Grip 1 Hand Grip 1" I/dPOA2Contact Us
2619.0.249 Cover Label Cover
Lever		POA1Contact Us
2719.0.242 Console CoverPOA1Contact Us

Please note all prices exclude VAT
