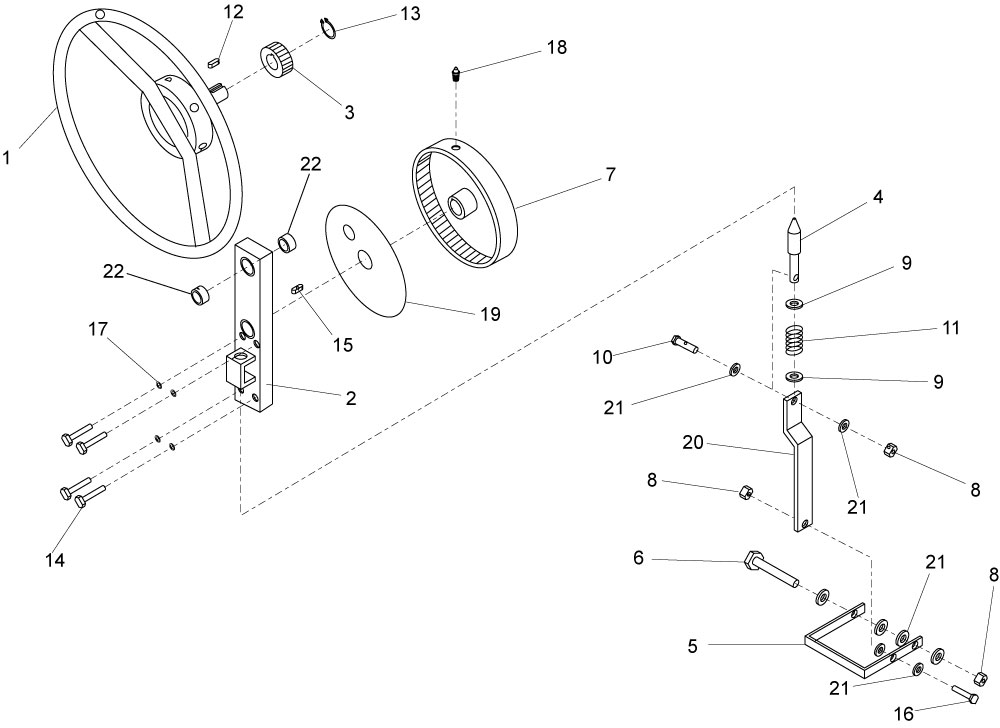

Handwheel Assembly

IDStockCode  DescriptionPriceSuggested Qty
1946/99572 HandwheelPOA1Contact Us
2944/99061 SupportPOA1Contact Us
3944/99014944/99014 - Pinion Tip 12 Teeth Pinion Tip 12 TeethPOA1Contact Us
4944/99015 Bar PlungerPOA1Contact Us
5909/99929909/99929 - Pressing Foot Pedal Pressing Foot PedalPOA1Contact Us
6963/99029 Screw M10 X 160POA1Contact Us
7946/99577 Gearz90POA1Contact Us
88/100068/10006 - Nut NutPOA3Contact Us
9963/99013 WasherPOA1Contact Us
107/100097/10009 - Screw ScrewPOA1Contact Us
11944/99017944/99017 - Spring 3.5/25/62/10 Spring 3.5/25/62/10POA1Contact Us
12944/99018944/99018 - Key 6 X 6 X 16 Key 6 X 6 X 16POA1Contact Us
13946/99534946/99534 - Ring Z-22 Ring Z-22POA1Contact Us
14944/99111 Bolt M10 X 120POA4Contact Us
15944/99019944/99019 - Key 10 X 8 X 16 Key 10 X 8 X 16POA1Contact Us
167/100107/10010 - Screw ScrewPOA1Contact Us
174/10054/1005 - Washer Washer
M10		POA4Contact Us
18500/06100500/06100 - Grease Nipple - M6 X 1mm Grease Nipple - M6 X 1mmPOA1Contact Us
19946/99580 Gear Cover Z90POA1Contact Us
20944/99021 Plunger ConrodPOA1Contact Us
214/10054/1005 - Washer Washer
M10		POA8Contact Us
22944/99060944/99060 - Sliding Bearing Sliding BearingPOA4Contact Us

Please note all prices exclude VAT
