Home > Compacting > Forward Plates > PCX 16/45 & 16/50 >

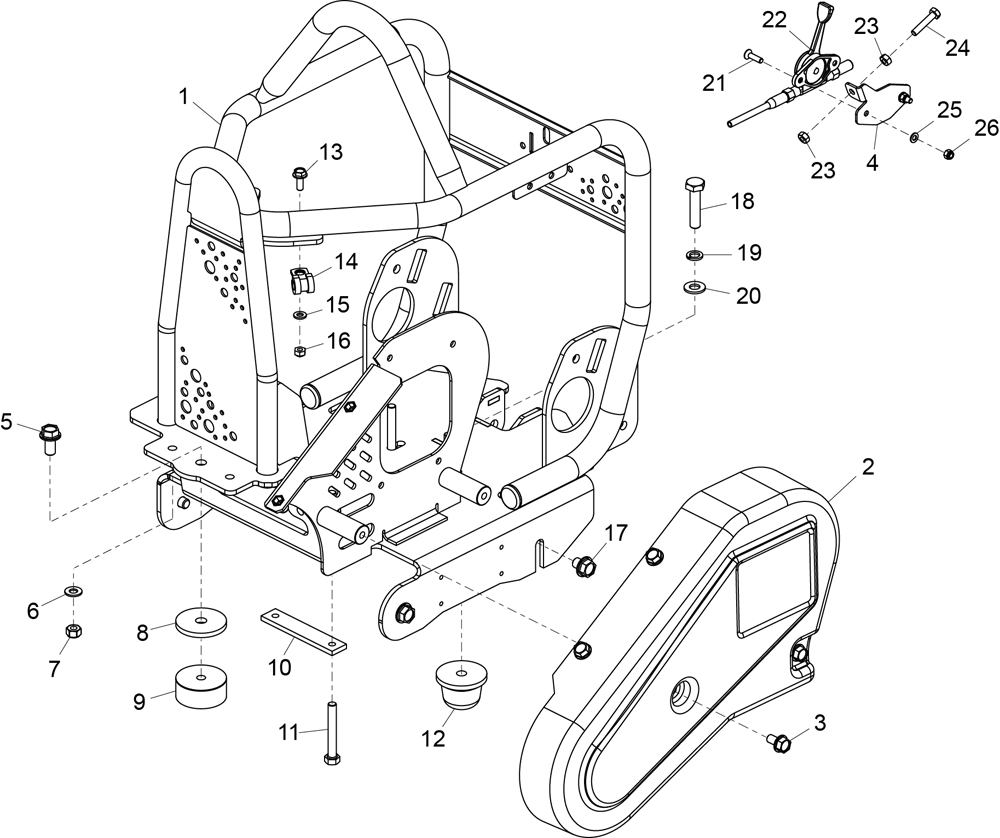

Bedplate Assembly

IDStockCode  DescriptionPriceSuggested Qty
1960/01900 Bedplate Wa PCX17-50aPOA1Contact Us
2960/99918S Belt Guard Orange - PCX17-50a
Orange 		POA1Contact Us
2960/99918G Belt Guard Green - PCX17-50a
Green		POA1Contact Us
2960/99918R Belt Guard Red - PCX17-50a
Red		POA1Contact Us
2960/99918Y Belt Guard Yellow - PCX17-50a
Yellow		POA1Contact Us
2960/99918W Belt Guard White - PCX17-50a
White		POA1Contact Us
37/80537/8053 - Screw ScrewPOA4Contact Us
421/0390 Pressing-RTX Throttle StopPOA1Contact Us
57/100397/10039 - Screw ScrewPOA1Contact Us
64/80064/8006 - Washer Washer
M8		POA2Contact Us
78/80088/8008 - Nut NutPOA2Contact Us
8960/99921 Buffer SpacerPOA1Contact Us
921/0415 50od X 21h M10 F BufferPOA1Contact Us
10151.0.161151.0.161 - Engine Clamp Bar Front-honda Engine Clamp Bar Front-hondaPOA2Contact Us
1102.0.03102.0.031 - Setscrew M8 X 60 Unplated Setscrew M8 X 60 UnplatedPOA4Contact Us
1221.0.33321.0.333 - Handle Buffer For Rpc 25/35 Handle Buffer For Rpc 25/35POA1Contact Us
137/60347/6034 - Screw ScrewPOA1Contact Us
154/60014/6001 - Washer Washer
M6		POA1Contact Us
168/60078/6007 - Nut NutPOA1Contact Us
177/100257/10025 - Screw ScrewPOA4Contact Us
189/100059/10005 - Bolt BoltPOA1Contact Us
194/10034/1003 - Washer Washer
M10		POA1Contact Us
204/10054/1005 - Washer Washer
M10		POA1Contact Us
217/5018 ScrewPOA2Contact Us
2221/0413 Throttle PCX17-50aPOA1Contact Us
238/60018/6001 - Nut NutPOA2Contact Us
247/60397/6039 - Screw ScrewPOA1Contact Us
254/50024/5002 - Washer Washer
M5		POA2Contact Us
268/50038/5003 - Nut NutPOA2Contact Us

Please note all prices exclude VAT
