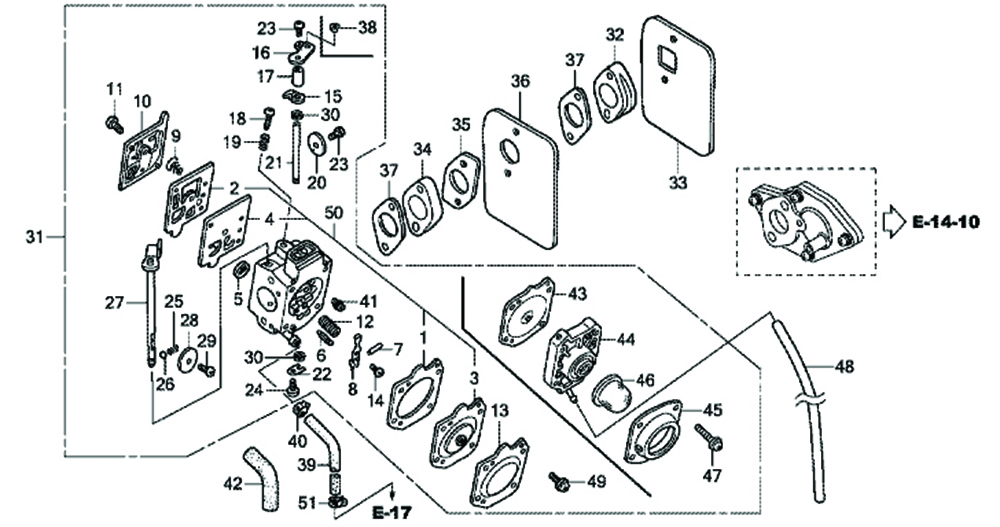

ID | StockCode | | | Description | Price | Suggested Qty | | |
---|
1 | 16010-Z0D-V02 | | GASKET, METERING DIAPHRAGM | POA | 1 | Contact Us |

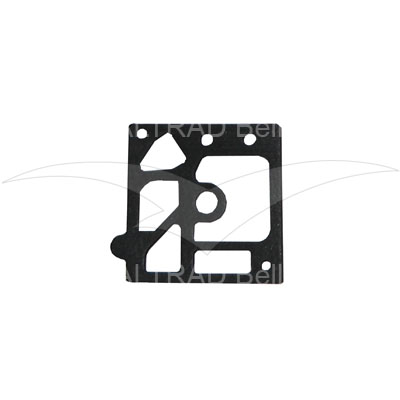

2 | 16011-Z0D-V02 | | | GASKET, PUMP | POA | 1 | Contact Us |

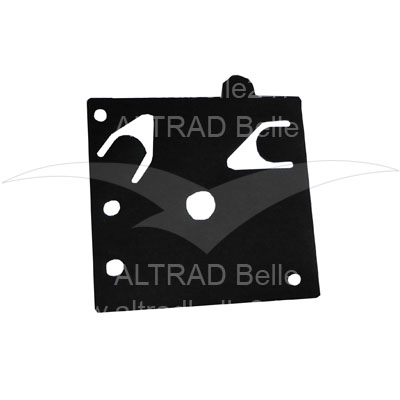

4 | 16014-Z0D-V02 | | | DIAPHRAGM, PUMP | POA | 1 | Contact Us |
5 | 16018-ZM3-004 | | SCREEN, INLET | POA | 1 | Contact Us |
6 | 16019-ZM3-004 | | VALVE, INLET NEEDLE | POA | 1 | Contact Us |
7 | 16022-ZM3-014 | | PIN, METERING LEVER | POA | 1 | Contact Us |
8 | 16023-Z0D-V02 | | LEVER, METERING | POA | 1 | Contact Us |
9 | 16030-ZM3-004 | | SPRING, PUMP | POA | 1 | Contact Us |
10 | 16040-Z4E-802 | | COVER, PUMP | POA | 1 | Contact Us |
11 | 16041-Z0D-V02 | | SCREW | POA | 1 | Contact Us |
12 | 16042-Z0D-V02 | | SPRING | POA | 1 | Contact Us |
14 | 16044-Z4E-802 | | SCREW | POA | 1 | Contact Us |
15 | 16045-Z0D-V02 | | STOPPER, THROTTLE LEVER | POA | 1 | Contact Us |
16 | 16046-Z0D-V73 | | LEVER, THROTTLE | POA | 1 | Contact Us |
17 | 16048-Z0D-V02 | | SPACER, THROTTLE LEVER | POA | 1 | Contact Us |
18 | 16049-Z4E-S12 | | SCREW, IDLE ADJUSTING | POA | 1 | Contact Us |
19 | 16050-Z0D-V02 | | SPRING | POA | 1 | Contact Us |
20 | 16051-Z0D-V02 | | VALVE, THROTTLE Up To HDA 278A | POA | 1 | Contact Us |
20 | 16051-Z4E-S44 | | VALVE, THROTTLE From HDA 278B | POA | 1 | Contact Us |
21 | 16052-Z0D-V02 | | SHAFT, THROTTLE | POA | 1 | Contact Us |
22 | 16053-Z0D-V02 | | CLIP, THROTTLE SHAFT | POA | 1 | Contact Us |
23 | 16054-Z0D-V02 | | SCREW, VALVE | POA | 2 | Contact Us |
24 | 16055-Z0D-V02 | | SCREW ASSY. | POA | 1 | Contact Us |
25 | 16056-Z0D-V02 | | SPRING | POA | 1 | Contact Us |
26 | 16057-Z0D-V02 | | BALL | POA | 1 | Contact Us |
27 | 16058-Z0D-V02 | | SHAFT ASSY., CHOKE | POA | 1 | Contact Us |
28 | 16059-Z0D-V03 | | VALVE, CHOKE | POA | 1 | Contact Us |
29 | 16060-Z0D-V02 | | SCREW | POA | 1 | Contact Us |
30 | 16061-Z0D-V02 | | SEAL, DUST | POA | 2 | Contact Us |
31 | 16100-Z4E-S44 | | | Carb 16100-z4e-s44 From 1333118, Up To 1352971 Now Use - 16100-Z4E-S46 | POA | 1 | Contact Us |

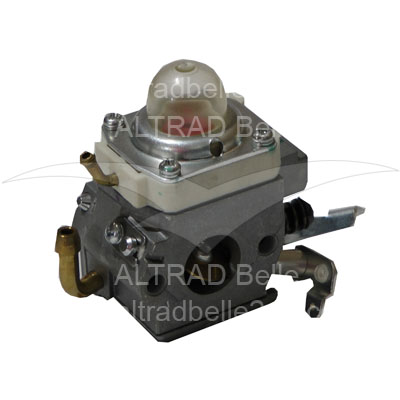

31 | 16100-Z4E-S46 | | | Carburetor From 1352972 | POA | 1 | Contact Us |
32 | 16211-Z0D-V01 | | INSULATOR, CARBURETOR | POA | 1 | Contact Us |
33 | 16212-Z0D-V00 | | PACKING, INSULATOR | POA | 1 | Contact Us |
34 | 16213-Z4E-S10 | | INSULATOR B, CARBURETOR | POA | 1 | Contact Us |
35 | 16214-Z0D-V01 | | PACKING, INSULATOR B | POA | 1 | Contact Us |
36 | 16215-Z0D-V00 | | PLATE, INSULATOR | POA | 1 | Contact Us |
37 | 16221-Z0D-V00 | | GASKET - CARBURETOR | POA | 2 | Contact Us |
38 | 16552-896-650 | | COLLAR, LEVER | POA | 1 | Contact Us |
39 | 91434-Z4E-881 | | HOSE, FUEL, 4.5X300 (FKM) Up To 1354812 | POA | 1 | Contact Us |
41 | 99101-Z0D0460 | | JET (#46) From HDA 278B | POA | -1 | Contact Us |
41 | 99101-Z0D0480 | | JET (#48) | POA | -1 | Contact Us |
41 | 99101-Z0D0500 | | JET (#50) From HDA 278B | POA | 1 | Contact Us |
41 | 99101-Z0D0500 | | JET (#50) Up To HDA 278A | POA | -1 | Contact Us |
41 | 99101-Z0D0520 | | JET (#52) Up To HDA 278A | POA | 1 | Contact Us |
41 | 99101-Z0D0520 | | JET (#52) From HDA 278B | POA | -1 | Contact Us |
41 | 99101-Z0D0540 | | JET (#54) Up To HDA 278A | POA | -1 | Contact Us |
43 | 16013-Z4E-S32 | | DIAPHRAGM ASSY., METERING Up To HDA 278A | POA | 1 | Contact Us |
43 | 16013-Z4E-S44 | | DIAPHRAGM ASSY., METERING From HDA 278B | POA | 1 | Contact Us |
44 | 16017-Z4E-S32 | | BODY ASSY., AIR PURGE | POA | 1 | Contact Us |
45 | 16026-Z4E-S32 | | COVER, PRIMER PUMP | POA | 1 | Contact Us |
46 | 16032-Z4E-S32 | | PUMP, PRIMER | POA | 1 | Contact Us |
47 | 16055-Z4E-S32 | | SCREW ASSY. | POA | 4 | Contact Us |
51 | 90602-MT7-003 | | CLAMPER, TUBE (D9.4) From 1354813 | POA | 1 | Contact Us |
51 | 95002-4085008 | | CLAMP, TUBE (D8.5) Up To 1354812 | POA | 1 | Contact Us |
| |
|
